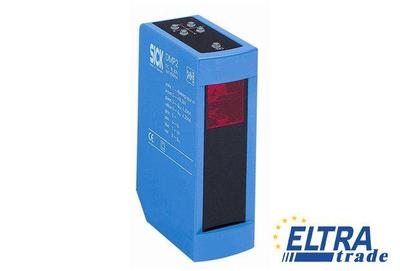

Sick DMP2-N11111 Distance sensor

Sick DMP2-N11111
Item Number: DMP2-N11111
  • Distances between 200 mm and 2,000 mm
  • 0.15 mm repeatability
  • Analog output 4 mA ... 20 mA
Price on Request
Quantity
-
+
Total price: 0.00
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Sick DMP2-N11111 is outdated.

Specification:

Part Number1016236
Protection class :II
Vibration resistance:According to IEC 68
Ripple :< 5 Vpp
Supply voltage Vs:DC 18 V ... 30 V
Ambient temperature:Operation: -25 ... 55 °C, Storage: -25 ... 75 °C
Target:Reflector
Connection type:Male connector M12, 8-pin
Weight:990 g
Analog output:2 x 4 mA ... 20 mA (700 &;937;), 2 x QA
Switching output:2 x NPN
Light source:LED, red
Blanking input AT:Blanked (triggered): NPN: 0V ... Uv - (≥ 18 V)
Free running: NPN: Uv- (≤ 2 V) or free running
Response time:3 ms
Sensing distance:200 mm ... 500 mm (PL22), 500 mm ... 1,200 mm (PL50A), 500 mm ... 2,000 mm (PL80A)
Operating mode:Choice of continuous or triggered
Sensing angle :± 10 °
Enclosure rating:IP 67
Output current IA:≤ 100 mA
Power consumption:< 250 mA
Repeatability :0.15 mm
Switching frequency:250 Hz
