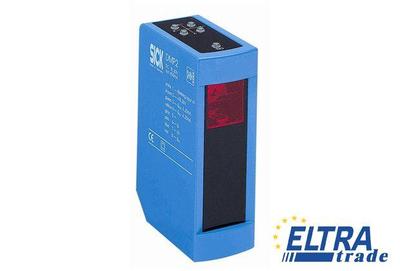

Sick DMP2-P21111 Position finders

Sick DMP2-P21111
Item Number: DMP2-P21111
  • Distances between 200 mm and 2,000 mm
  • 0.15 mm repeatability
  • Analog output 4 mA ... 20 mA
Price on Request
Quantity
-
+
Total price: 0.00
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Sick DMP2-P21111 is outdated.

Specification:

Part Number1016237
Target:Reflector
Switching output:5 x PNP
Output current IA:≤ 100 mA
Blanking input AT:Blanked (triggered): PNP: > 18 V ... > Uv max.
Free running: PNP: < 2 V or free running
Ripple :< 5 Vpp
Operating mode:Choice of continuous or triggered
Sensing angle :± 10 °
Ambient temperature:Operation: -25 ... 55 °C, Storage: -25 ... 75 °C
Protection class :II
Vibration resistance:According to IEC 68
Sensing distance:200 mm ... 500 mm (PL22), 500 mm ... 1,200 mm (PL50A), 500 mm ... 2,000 mm (PL80A)
Power consumption:< 250 mA
Enclosure rating:IP 67
Switching frequency:250 Hz
Light source:LED, red
Connection type:Male connector M12, 8-pin
Response time:3 ms
Supply voltage Vs:DC 18 V ... 30 V
Weight:990 g
Repeatability :0.15 mm
