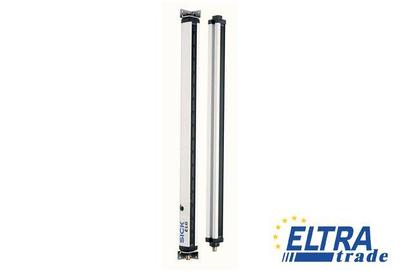

Sick ELG3-0450P561 Switching automation light grids

Sick ELG3-0450P561
Item Number: ELG3-0450P561
  • Up to 128 beams
  • Different beam separations 30 mm and 60 mm
  • High functional reserve (gain) for ranges up to 12 m
585.29
Quantity
-
+
Total price: 585.29
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Specification:

Part Number1027894
Ambient light safety:Indirect: ≤ 150,000 lx
EMC:EN 60947-5-2
Technology:Sender/receiver
Output current Imax.:100 mA
Switching frequency:313 kHz
Minimum range:≥0 mm
Front screen:PMMA
Ripple:< 5 Vpp
Connection type:Connector M12, 4-pin
Output load inductive:1 H
Test input:PNP
Indication:LED
Output load capacitive:100 nF
Evaluation beams:Parallel beam
Protection class:III
Maximum range:17 m
Power consumption sender :< 100 mA
Supply voltage Vs :DC 15 V ... 30 V
Housing material:Aluminum
Vibration resistance:5 g, 10 Hz ... 55 Hz (IEC 68-2-6)
Detection height:450 mm
Task:Switching light grid
Initialization time:1 s
Minimum detectable object (MDO):Parallel beam: ≥ 35 mm ... 65 mm
Enclosure rating:IP 65
Switching output:2 x PNP (Q and /Q)
Working range:12 m
Weight:1,500 g
Number of beams:16
Output mode :Q dark switching
Dimensions (W x H x D):34 mm x 526 mm x 29 mm
Ambient temperature:Operation: -25 ... +55 °C
Storage: -40 ... +70 °C
Wave length:880 nm
Beam separation:30 mm
Circuit protection:Output Q short-circuit protected
Interference suppression
VS connections reverse-polarity protected
Response time :Parallel beam 28 ms
Power consumption receiver :< 100 mA
Shock load:10 g / DIN EN 60068-2-29 / 16 ms
Synchronization:Optical
