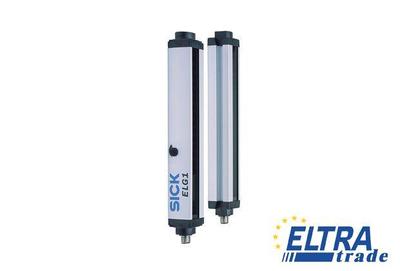

Sick ELG3-0450P591 Switching automation light grids

Sick ELG3-0450P591
Item Number: ELG3-0450P591
  • Up to 16 beams with 10 mm and 112 with 30 mm beam separation
  • Range up to 5 m
  • Potentiometer for sensitivity setting
Price on Request
Total price: 0.00
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Sick ELG3-0450P591 is outdated.


Part Number1029489
Circuit protection:Output Q short-circuit protected
Interference suppression
VS connections reverse-polarity protected
Number of beams:16
Output mode :Q dark switching
Task:Switching light grid
Minimum detectable object (MDO):Parallel beam: ≥ 35 mm ... 65 mm
Protection class:III
Minimum range:≥0 mm
Output load capacitive:100 nF
Connection type:Connector M12, 4-pin
Output current Imax.:100 mA
Front screen:PMMA
Beam separation:30 mm
EMC:EN 60947-5-2
Shock load:10 g / DIN EN 60068-2-29 / 16 ms
Switching frequency:500 kHz
Output load inductive:1 H
Detection height:450 mm
Wave length:880 nm
Initialization time:1 s
Response time :Parallel beam 14 ms
Switching output:2 x PNP (Q and /Q)
Working range:2 m
Power consumption sender :< 100 mA
Enclosure rating:IP 65
Ripple:< 5 Vpp
Housing material:Aluminum
Weight:1,500 g
Supply voltage Vs :DC 15 V ... 30 V
Maximum range:3 m
Vibration resistance:5 g, 10 Hz ... 55 Hz (IEC 68-2-6)
Test input:PNP
Power consumption receiver :< 100 mA
Dimensions (W x H x D):34 mm x 526 mm x 29 mm
Ambient temperature:Operation: -25 ... +55 °C
Storage: -40 ... +70 °C
Ambient light safety:Indirect: ≤ 150,000 lx
Evaluation beams:Parallel beam
