Sick ELG3-0690N511 Switching automation light grids

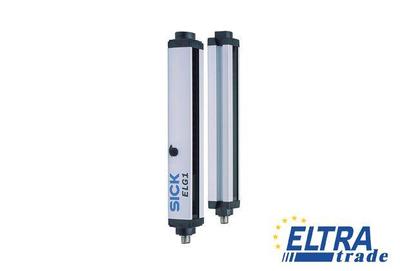

Sick ELG3-0690N511
Item Number: ELG3-0690N511
  • Up to 16 beams with 10 mm and 112 with 30 mm beam separation
  • Range up to 5 m
  • Potentiometer for sensitivity setting
Total price: 676.12
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments


Part Number1041956
Ambient temperature:Operation: -25 ... +55 °C
Storage: -40 ... +70 °C
Output load inductive:1 H
Task:Switching light grid
Maximum range:3 m
Wave length:880 nm
Number of beams:24
Working range:2 m
Beam separation:30 mm
Minimum range:≥0 mm
Power consumption receiver :< 100 mA
Housing material:Aluminum
Front screen:PMMA
Output load capacitive:100 nF
Ambient light safety:Indirect: ≤ 150,000 lx
Evaluation beams:Parallel beam
Minimum detectable object (MDO):Parallel beam: ≥ 35 mm ... 65 mm
Protection class:III
Shock load:10 g / DIN EN 60068-2-29 / 16 ms
Ripple:< 5 Vpp
Connection type:Connector M12, 4-pin
Dimensions (W x H x D):34 mm x 766 mm x 29 mm
Switching output:2 x NPN (Q and /Q)
Output mode :Q dark switching
Supply voltage Vs :DC 15 V ... 30 V
Output current Imax.:100 mA
Initialization time:1 s
Circuit protection:Output Q short-circuit protected
Interference suppression
VS connections reverse-polarity protected
Response time :Parallel beam 100 ms
EMC:EN 60947-5-2
Weight:2,100 g
Detection height:690 mm
Power consumption sender :< 100 mA
Enclosure rating:IP 65
Test input:PNP
Switching frequency:250 kHz
Vibration resistance:5 g, 10 Hz ... 55 Hz (IEC 68-2-6)
