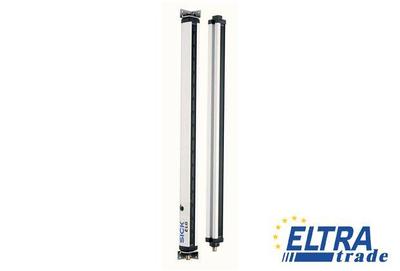

Sick ELG3-0810P523 Switching automation light grids

Sick ELG3-0810P523
Item Number: ELG3-0810P523
  • Up to 128 beams
  • Different beam separations 30 mm and 60 mm
  • High functional reserve (gain) for ranges up to 12 m
874.58
Quantity
-
+
Total price: 874.58
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Specification:

Part Number1026177
Protection class:III
Front screen:PMMA
Enclosure rating:IP 65
Circuit protection:Output Q short-circuit protected
Interference suppression
VS connections reverse-polarity protected
Working range:12 m
Power consumption sender :< 100 mA
Housing material:Aluminum
Output load capacitive:100 nF
Maximum range:17 m
Weight:2,400 g
Initialization time:1 s
Supply voltage Vs :DC 15 V ... 30 V
Minimum range:≥500 mm
Synchronization:Optical
Output mode :Q dark switching
Vibration resistance:5 g, 10 Hz ... 55 Hz (IEC 68-2-6)
Connection type:Connector M12, 4-pin
Wave length:880 nm
Evaluation beams:Multiple scan
Output load inductive:1 H
Switching frequency:250 kHz
Response time :Parallel beam 300 ms
EMC:EN 60947-5-2
Ambient light safety:Indirect: ≤ 150,000 lx
Test input:PNP
Power consumption receiver :< 100 mA
Technology:Sender/receiver
Beam separation:30 mm
Ripple:< 5 Vpp
Shock load:10 g / DIN EN 60068-2-29 / 16 ms
Minimum detectable object (MDO):Cross beam: ≥ 20 mm ... 35 mm
Ambient temperature:Operation: -25 ... +55 °C
Storage: -40 ... +70 °C
Indication:LED
Dimensions (W x H x D):34 mm x 886 mm x 29 mm
Switching output:2 x PNP (Q and /Q)
Output current Imax.:100 mA
Number of beams:28
Task:Switching light grid
Detection height:810 mm
