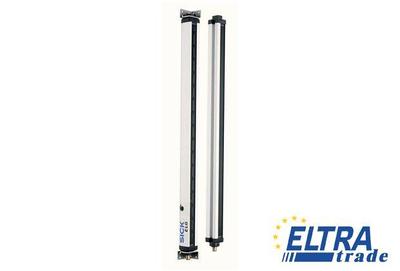

Sick ELG3-0930N521 Switching automation light grids
Item Number: ELG3-0930N521
- Up to 128 beams
- Different beam separations 30 mm and 60 mm
- High functional reserve (gain) for ranges up to 12 m
- Overview
- Datasheet
- Alternative numbers
- Comments
Specification:
| Part Number | 1025616 |
| Enclosure rating: | IP 65 |
| Front screen: | PMMA |
| Supply voltage Vs : | DC 15 V ... 30 V |
| Ambient temperature: | Operation: -25 ... +55 °C Storage: -40 ... +70 °C |
| Synchronization: | Optical |
| Beam separation: | 30 mm |
| Minimum range: | ≥0 mm |
| Power consumption receiver : | < 100 mA |
| Task: | Switching light grid |
| Minimum detectable object (MDO): | Parallel beam: ≥ 35 mm ... 65 mm |
| Working range: | 12 m |
| Weight: | 2,600 g |
| Evaluation beams: | Parallel beam |
| Switching frequency: | 250 kHz |
| Initialization time: | 1 s |
| Test input: | PNP |
| Housing material: | Aluminum |
| Technology: | Sender/receiver |
| Response time : | Parallel beam 100 ms |
| Wave length: | 880 nm |
| Indication: | LED |
| Shock load: | 10 g / DIN EN 60068-2-29 / 16 ms |
| Ambient light safety: | Indirect: ≤ 150,000 lx |
| Number of beams: | 32 |
| Vibration resistance: | 5 g, 10 Hz ... 55 Hz (IEC 68-2-6) |
| Output mode : | Q dark switching |
| EMC: | EN 60947-5-2 |
| Maximum range: | 17 m |
| Power consumption sender : | < 100 mA |
| Output current Imax.: | 100 mA |
| Connection type: | Connector M12, 4-pin |
| Output load inductive: | 1 H |
| Output load capacitive: | 100 nF |
| Switching output: | 2 x NPN (Q and /Q) |
| Dimensions (W x H x D): | 34 mm x 1,006 mm x 29 mm |
| Ripple: | < 5 Vpp |
| Protection class: | III |
| Circuit protection: | Output Q short-circuit protected Interference suppression VS connections reverse-polarity protected |
| Detection height: | 930 mm |
