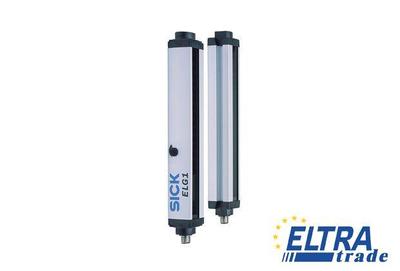

Sick ELG3-0930P511 Switching automation light grids

Sick ELG3-0930P511
Item Number: ELG3-0930P511
  • Up to 16 beams with 10 mm and 112 with 30 mm beam separation
  • Range up to 5 m
  • Potentiometer for sensitivity setting
809.54
Quantity
-
+
Total price: 809.54
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Specification:

Part Number1025492
Indication:LED
Output load inductive:1 H
Power consumption sender :< 100 mA
Circuit protection:Output Q short-circuit protected
Interference suppression
VS connections reverse-polarity protected
Output mode :Q dark switching
Test input:PNP
Task:Switching light grid
Response time :Parallel beam 100 ms
Ambient light safety:Indirect: ≤ 150,000 lx
Front screen:PMMA
Protection class:III
Shock load:10 g / DIN EN 60068-2-29 / 16 ms
Beam separation:30 mm
Minimum range:≥0 mm
Output load capacitive:100 nF
Technology:Sender/receiver
Switching output:2 x PNP (Q and /Q)
Output current Imax.:100 mA
Vibration resistance:5 g, 10 Hz ... 55 Hz (IEC 68-2-6)
Maximum range:3 m
Supply voltage Vs :DC 15 V ... 30 V
Ripple:< 5 Vpp
Minimum detectable object (MDO):Parallel beam: ≥ 35 mm ... 65 mm
Synchronization:Optical
Enclosure rating:IP 65
Weight:2,600 g
Detection height:930 mm
Evaluation beams:Parallel beam
Initialization time:1 s
Ambient temperature:Operation: -25 ... +55 °C
Storage: -40 ... +70 °C
EMC:EN 60947-5-2
Working range:2 m
Number of beams:32
Dimensions (W x H x D):34 mm x 1,006 mm x 29 mm
Connection type:Connector M12, 4-pin
Housing material:Aluminum
Switching frequency:250 kHz
Wave length:880 nm
Power consumption receiver :< 100 mA
