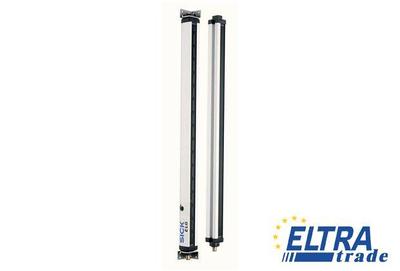

Sick ELG3-0930R121 Switching automation light grids

Sick ELG3-0930R121
Item Number: ELG3-0930R121
  • Up to 128 beams
  • Different beam separations 30 mm and 60 mm
  • High functional reserve (gain) for ranges up to 12 m
897.00
Quantity
-
+
Total price: 897.00
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Specification:

Part Number1025785
Front screen:PMMA
Housing material:Aluminum
Working range:12 m
Circuit protection:Output Q short-circuit protected
Interference suppression
VS connections reverse-polarity protected
Shock load:10 g / DIN EN 60068-2-29 / 16 ms
Weight:2,600 g
EMC:EN 60947-5-2
Output load capacitive:100 nF
Ripple:< 5 Vpp
Wave length:880 nm
Evaluation beams:Parallel beam
Synchronization:Optical
Power consumption sender :< 100 mA
Connection type:Leitung 5 m
Ambient light safety:Indirect: ≤ 150,000 lx
Vibration resistance:5 g, 10 Hz ... 55 Hz (IEC 68-2-6)
Task:Switching light grid
Beam separation:30 mm
Minimum range:≥0 mm
Number of beams:32
Protection class:III
Output load inductive:1 H
Indication:LED
Response time :Parallel beam 100 ms
Minimum detectable object (MDO):Parallel beam: ≥ 35 mm ... 65 mm
Technology:Sender/receiver
Switching frequency:250 kHz
Ambient temperature:Operation: -25 ... +55 °C
Storage: -40 ... +70 °C
Power consumption receiver :< 100 mA
Detection height:930 mm
Supply voltage Vs :DC 15 V ... 30 V
Test input:PNP
Output mode :Light switching
Maximum range:17 m
Initialization time:1 s
Switching output:Relais (DC 60 V, AC 25 V)
Enclosure rating:IP 65
Output current Imax.:100 mA
Dimensions (W x H x D):34 mm x 1,006 mm x 29 mm
