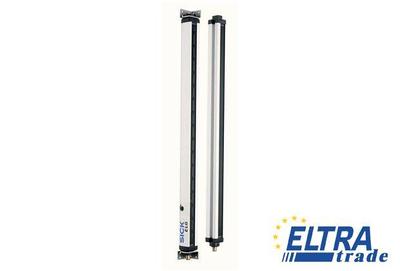

Sick ELG3-0930R521 Switching automation light grids

Sick ELG3-0930R521
Item Number: ELG3-0930R521
  • Up to 128 beams
  • Different beam separations 30 mm and 60 mm
  • High functional reserve (gain) for ranges up to 12 m
Total price: 897.00
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments


Part Number1025449
Test input:PNP
Beam separation:30 mm
Ambient light safety:Indirect: ≤ 150,000 lx
Number of beams:32
Vibration resistance:5 g, 10 Hz ... 55 Hz (IEC 68-2-6)
Front screen:PMMA
Ripple:< 5 Vpp
Dimensions (W x H x D):34 mm x 1,006 mm x 29 mm
Supply voltage Vs :DC 15 V ... 30 V
Switching frequency:250 kHz
Maximum range:17 m
Response time :Parallel beam 100 ms
Power consumption sender :< 100 mA
Power consumption receiver :< 100 mA
Connection type:Male connector M12, 5-pin
Protection class:III
Output mode :Light switching
Minimum detectable object (MDO):Parallel beam: ≥ 35 mm ... 65 mm
Output load inductive:1 H
Initialization time:1 s
Minimum range:≥0 mm
Housing material:Aluminum
EMC:EN 60947-5-2
Enclosure rating:IP 65
Ambient temperature:Operation: -25 ... +55 °C
Storage: -40 ... +70 °C
Task:Switching light grid
Circuit protection:Output Q short-circuit protected
Interference suppression
VS connections reverse-polarity protected
Output load capacitive:100 nF
Switching output:Relais (DC 60 V, AC 25 V)
Detection height:930 mm
Wave length:880 nm
Weight:2,600 g
Evaluation beams:Parallel beam
Working range:12 m
Output current Imax.:100 mA
Shock load:10 g / DIN EN 60068-2-29 / 16 ms
