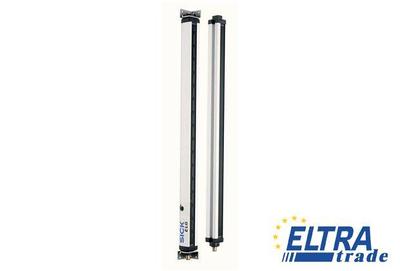

Sick ELG3-1890N521 Switching automation light grids

Sick ELG3-1890N521
Item Number: ELG3-1890N521
  • Up to 128 beams
  • Different beam separations 30 mm and 60 mm
  • High functional reserve (gain) for ranges up to 12 m
Price on Request
Quantity
-
+
Total price: 0.00
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Sick ELG3-1890N521 is outdated.

Specification:

Part Number1025621
Output current Imax.:100 mA
Supply voltage Vs :DC 15 V ... 30 V
Weight:4,800 g
Power consumption receiver :< 100 mA
Number of beams:64
Working range:12 m
Vibration resistance:5 g, 10 Hz ... 55 Hz (IEC 68-2-6)
Ambient light safety:Indirect: ≤ 150,000 lx
Shock load:10 g / DIN EN 60068-2-29 / 16 ms
Protection class:III
Switching output:2 x NPN (Q and /Q)
Minimum range:≥0 mm
Output load inductive:1 H
Detection height:1,890 mm
Technology:Sender/receiver
Initialization time:1 s
Switching frequency:250 kHz
Output load capacitive:100 nF
Output mode :Q dark switching
Indication:LED
Circuit protection:Output Q short-circuit protected
Interference suppression
VS connections reverse-polarity protected
Task:Switching light grid
Ripple:< 5 Vpp
Dimensions (W x H x D):34 mm x 1,966 mm x 29 mm
Enclosure rating:IP 65
Power consumption sender :< 100 mA
EMC:EN 60947-5-2
Minimum detectable object (MDO):Parallel beam: ≥ 35 mm ... 65 mm
Connection type:Connector M12, 4-pin
Beam separation:30 mm
Front screen:PMMA
Housing material:Aluminum
Synchronization:Optical
Wave length:880 nm
Maximum range:17 m
Evaluation beams:Parallel beam
Response time :Parallel beam 100 ms
Ambient temperature:Operation: -25 ... +55 °C
Storage: -40 ... +70 °C
Test input:PNP
