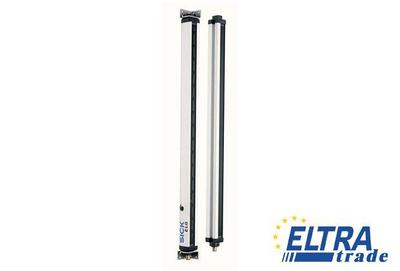

Sick ELG6-0900R523 Switching automation light grids

Sick ELG6-0900R523
Item Number: ELG6-0900R523
  • Up to 128 beams
  • Different beam separations 30 mm and 60 mm
  • High functional reserve (gain) for ranges up to 12 m
731.06
Quantity
-
+
Total price: 731.06
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Specification:

Part Number1025453
Vibration resistance:5 g, 10 Hz ... 55 Hz (IEC 68-2-6)
Shock load:10 g / DIN EN 60068-2-29 / 16 ms
Task:Switching light grid
Power consumption receiver :< 100 mA
Technology:Sender/receiver
Power consumption sender :< 100 mA
Supply voltage Vs :DC 15 V ... 30 V
Minimum range:≥900 mm
Wave length:880 nm
Response time :Parallel beam 84 ms
Protection class:III
Initialization time:1 s
EMC:EN 60947-5-2
Output mode :Light switching
Test input:PNP
Weight:2,600 g
Number of beams:16
Maximum range:17 m
Ambient temperature:Operation: -25 ... +55 °C
Storage: -40 ... +70 °C
Working range:12 m
Switching output:Relais (DC 60 V, AC 25 V)
Circuit protection:Output Q short-circuit protected
Interference suppression
VS connections reverse-polarity protected
Housing material:Aluminum
Connection type:Male connector M12, 5-pin
Output load capacitive:100 nF
Front screen:PMMA
Evaluation beams:Multiple scan
Enclosure rating:IP 65
Indication:LED
Synchronization:Optical
Dimensions (W x H x D):34 mm x 976 mm x 29 mm
Minimum detectable object (MDO):Cross beam: ≥ 20 mm ... 35 mm
Switching frequency:250 kHz
Detection height:900 mm
Output current Imax.:100 mA
Ambient light safety:Indirect: ≤ 150,000 lx
Output load inductive:1 H
Ripple:< 5 Vpp
Beam separation:60 mm
