Sick ELG6-1380R523 Switching automation light grids

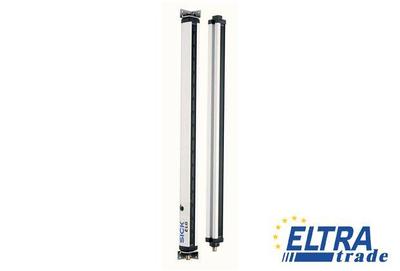

Sick ELG6-1380R523
Item Number: ELG6-1380R523
  • Up to 128 beams
  • Different beam separations 30 mm and 60 mm
  • High functional reserve (gain) for ranges up to 12 m
Total price: 930.63
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments


Part Number1025451
Test input:PNP
Supply voltage Vs :DC 15 V ... 30 V
Protection class:III
Ambient light safety:Indirect: ≤ 150,000 lx
Ripple:< 5 Vpp
Working range:12 m
Output load inductive:1 H
Power consumption sender :< 100 mA
Wave length:880 nm
Number of beams:24
Beam separation:60 mm
Evaluation beams:Multiple scan
Maximum range:17 m
Output current Imax.:100 mA
Ambient temperature:Operation: -25 ... +55 °C
Storage: -40 ... +70 °C
Minimum detectable object (MDO):Cross beam: ≥ 20 mm ... 35 mm
Detection height:1,380 mm
Minimum range:≥900 mm
Dimensions (W x H x D):34 mm x 1,456 mm x 29 mm
Initialization time:1 s
Switching frequency:250 kHz
Switching output:Relais (DC 60 V, AC 25 V)
Power consumption receiver :< 100 mA
Task:Switching light grid
Enclosure rating:IP 65
Circuit protection:Output Q short-circuit protected
Interference suppression
VS connections reverse-polarity protected
Response time :Parallel beam 300 ms
Front screen:PMMA
Vibration resistance:5 g, 10 Hz ... 55 Hz (IEC 68-2-6)
Housing material:Aluminum
Weight:3,700 g
EMC:EN 60947-5-2
Output load capacitive:100 nF
Output mode :Light switching
Shock load:10 g / DIN EN 60068-2-29 / 16 ms
Connection type:Male connector M12, 5-pin
