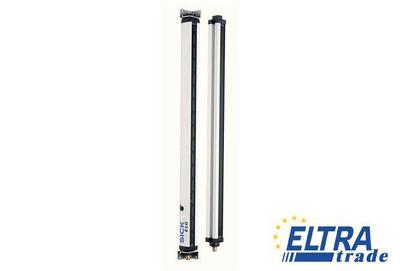

Sick ELG6-1860R521 Switching automation light grids

Sick ELG6-1860R521
Item Number: ELG6-1860R521
  • Up to 128 beams
  • Different beam separations 30 mm and 60 mm
  • High functional reserve (gain) for ranges up to 12 m
1075.28
Quantity
-
+
Total price: 1075.28
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Specification:

Part Number1026182
Enclosure rating:IP 65
Switching output:Relais (DC 60 V, AC 25 V)
Maximum range:17 m
Technology:Sender/receiver
Output load inductive:1 H
Initialization time:1 s
Number of beams:32
Ripple:< 5 Vpp
Switching frequency:250 kHz
Synchronization:Optical
Task:Switching light grid
Power consumption sender :< 100 mA
Output load capacitive:100 nF
Ambient light safety:Indirect: ≤ 150,000 lx
Working range:12 m
Detection height:1,860 mm
Circuit protection:Output Q short-circuit protected
Interference suppression
VS connections reverse-polarity protected
Beam separation:60 mm
Output mode :Light switching
Vibration resistance:5 g, 10 Hz ... 55 Hz (IEC 68-2-6)
Shock load:10 g / DIN EN 60068-2-29 / 16 ms
Minimum range:≥0 mm
Power consumption receiver :< 100 mA
Evaluation beams:Parallel beam
Wave length:880 nm
Housing material:Aluminum
Dimensions (W x H x D):34 mm x 1,936 mm x 29 mm
Connection type:Male connector M12, 5-pin
Test input:PNP
EMC:EN 60947-5-2
Minimum detectable object (MDO):Parallel beam: ≥ 35 mm ... 65 mm
Weight:4,800 g
Ambient temperature:Operation: -25 ... +55 °C
Storage: -40 ... +70 °C
Front screen:PMMA
Indication:LED
Output current Imax.:100 mA
Response time :Parallel beam 100 ms
Supply voltage Vs :DC 15 V ... 30 V
Protection class:III
