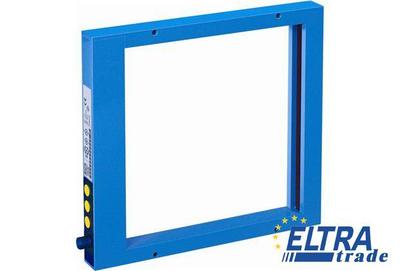

Sick FLG4-20018011 Switching automation light grids

Sick FLG4-20018011
Item Number: FLG4-20018011
  • Dynamic or static operating mode, switchable
  • Simple adjustment
  • Adjustable sensitivity
986.70
Quantity
-
+
Total price: 986.70
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Specification:

Part Number6049136
Ambient light safety:Sunlight: 10,000 lx
Connection type:Connector M12, 4-pin
Task :Switching light grid
Wave length:880 nm
Protection class:III
Version:Close
Weight:1 kg
Shock load:EN 60068-2-27
Dimensions (W x H x D):242 mm x 230 mm x 25 mm
Initialization time:0.3 s
Output current Imax.:100 mA
Ripple:< 10 %
Output function:Light/dark switching adjustable by means of rotary switch
Indication:LED
Supply voltage Vs :DC 18 V ... 30 V
Ambient temperature :Operation: 0 ... +60 °C
Storage: -20 ... +80 °C
Detection area (W x H):180 mm x 200 mm
Circuit protection:Output Q short-circuit protected
Interference suppression
VS connections reverse-polarity protected
Technology:Sender/receiver
Off delay:0 s ... 5 s
Minimum detectable object (MDO):Dynamic: 4 mm
Statiic: 6 mm
EMC:EN 60947-5-2
Response time:< 0.1 ms
Housing material:Aluminum, painted
Switching frequency:≤ 5,000 Hz
Vibration resistance:(EN 60068-2-6)
Enclosure rating:IP 65
Beam separation:4 mm
