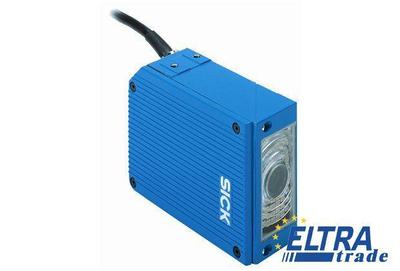

Sick ICR840-2C0020 Image-based code readers

Sick ICR840-2C0020
Item Number: ICR840-2C0020
  • Configure with live image and auto setup
  • Fast, omni-directional reading of printed and direct marked 1D and 2D codes
  • Rapid image and data transfer via Ethernet
Price on Request
Quantity
-
+
Total price: 0.00
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Sick ICR840-2C0020 is outdated.

Specification:

Part Number1042279
Dimensions:112 mm x 80 mm x 39 mm
Housing:Die-cast zinc
Focus:Fixed focus
Focus position:115 mm
Power consumption:13 W
Enclosure rating:IP 30, IP 65 (EN 60529)
Vibration resistance:EN 60068-2-6
Light source:Visible red light (lighting LEDs, 617 nm, ± 15 nm)
Protocol (Ethernet):TCP/IP, FTP (image transmission), PROFINET (optional via external connection module CDM)
Data transmission rate (CAN bus):10 kbit/s ... 1 Mbit/s
Electromagnetic compatibility (EMC):EN 61000-6-2 / EN 61000-6-4
Code resolution:≥0.15 mm
Shock resistance:EN 60068-2-27
Housing color:Light blue (RAL 5012)
No. of codes per reading interval:1 ... 50
CAN bus:+
Laser class:1 (EN 60825-1)
Function (Ethernet):Host, AUX, image transmission
Optical indicators:6 LEDs (status displays)
Electrical connection:1 x RJ45 female connector on device, cables with 15-pin D-sub HD male connector (0.9 m, ± 5 %)
Function (CAN bus):SICK CAN sensor network (Master/Slave, Multiplexer)
MTBF:75,000 h
Data transmission rate (Ethernet):10/100 Mbit
Reading field:Front
DeviceNet:+
Scanning frequency:25 Hz, at 1.3 megapixels resolution
Sensor:CMOS matrix sensor
Protocol (CAN bus):CANopen, CSN (SICK CAN Sensor Network)
Remark (PROFIBUS DP):Optional via external connection module (CDM + CMF)
Acoustic indicators:Beeper/buzzer (can be switched off, can be assigned a function to signal a result)
Remark (DeviceNet):Optional via external connection module (CDM + CMF)
Reading distance:70 mm ... 210 mm
PROFIBUS DP:+
Ambient operating temperature:0 °C ... +40 °C
Protection class:III (EN 61140)
Permissible relative humidity:± 90 %, non-condensing
Ambient light safety:2,000 lx, on bar code
Bar code types:Interleaved 2 of 5, Codabar, Code 128, Code 39, GS1-128 / EAN 128, Pharmacode, UPC / GTIN / EAN
Serial (RS-232):+
Operating voltage:15 V DC ... 30 V DC
Storage temperature:-20 °C ... +70 °C
No. of codes per scan:1 ... 50
Ethernet:+
Switching outputs:2 (Result 1 NPN, Result 2 PNP)
2D code types:Data Matrix ECC200, GS1 Data-Matrix, QR code
Data transmission rate (Serial (RS-232)):300 Baud ... 57,600 Baud, AUX: 9,600 Baud
Sensor resolution:1,280 px x 1,024 px (1.3 Mpixel
Reading pulse:Non-powered, Switching inputs, Serial interface
No. of characters per reading interval:4,000
Function (Serial (RS-232)):Host, AUX
Weight:900 g, with connecting cable
Version:Mid Range
Switching inputs:2
