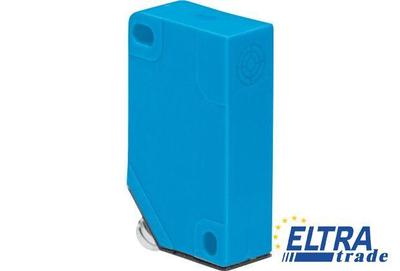

Sick IQ12-06NPS-KT0 IQ Inductive proximity sensors

Sick IQ12-06NPS-KT0
Item Number: IQ12-06NPS-KT0
  • Increased operating distance 3 mm/6 mm
  • High switching frequency
  • Short-circuit protection (pulsed)
Price on Request
Quantity
-
+
Total price: 0.00
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Sick IQ12-06NPS-KT0 is outdated.

Specification:

Part Number1016467
EMC:According to EN 60947-5-2
Temperature drift (of Sr):± 10 %
Installation type:Non-flush
Connection type:Connector M8, 3-pin
Reverse polarity protection:+
Repeatability:≤ 1 %
C:12 mm
Switching output:PNP
Time delay before availability:≤ 10 ms
Design:Rectangular
Output current Ia:≤ 300 mA
E:8 mm
F:48 mm
Hysteresis:1 % ... 15 %
Enclosure rating:IP 67
B:24 mm
Ambient operating temperature:-25 °C ... +75 °C
G:12 mm
Shock/vibration:30 g, 11 ms / 10 ... 55 Hz, 1 mm
Output function:NO
Sensing face material:Plastic, PA12
A:6 mm
Electrical wiring:DC 3-wire
D:24 mm
Ripple:≤ 10 %
Switching frequency:1,000 Hz
Housing material:Plastic
Remark:Associated graphic see "Installation"
Voltage drop:≤ 1.5 V
Power consumption:≤ 5 mA
Dimensions (W x H x D):12 mm x 26 mm x 40 mm
Short-circuit protection:+
Power-up pulse protection:+
Supply voltage:6 V DC ... 36 V DC
Sensing range Sn:6 mm
