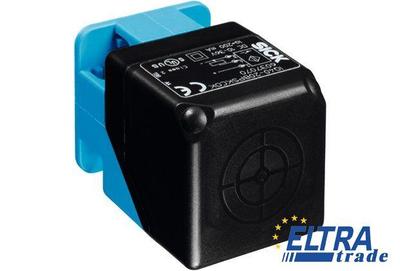

Sick IQ40-35NPPKC0K IQ Inductive proximity sensors

Sick IQ40-35NPPKC0K
Item Number: IQ40-35NPPKC0K
  • Increased operating distance up to 40 mm
  • Corner LEDs
  • Sensing face rotatable in five directions
89.99
Quantity
-
+
Total price: 89.99
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Sick IQ40-35NPPKC0K is outdated.

Specification:

Part Number6037075
Short-circuit protection:+
Shock/vibration:30 g, 11 ms / 10 ... 55 Hz, 1 mm
Switching output:PNP
Ambient operating temperature:-25 °C ... 70 °C
Housing material:Plastic
Switching frequency:80 Hz
Electrical wiring:DC 4-wire
Voltage drop:≤ 2.5 V
Connection type:Connector M12, 4-pin
Supply voltage:10 V DC ... 36 V DC
Special features:Class 2 power source, as per cULus
Enclosure rating:IP 67
Output current Ia:≤ 200 mA
Installation type:Non-flush
Housing:Short-body
Sensing range Sn:35 mm
Remark:Associated graphic see "Installation"
Reverse polarity protection:+
Sensing face material:Plastic, PA6
Power consumption:≤ 25 mA
Output function:Complementary
Dimensions (W x H x D):40 mm x 40 mm x 66 mm
Design:Rectangular
Temperature drift (of Sr):± 10 %
Power-up pulse protection:+
Hysteresis:1 % ... 20 %
EMC:According to EN 60947-5-2
