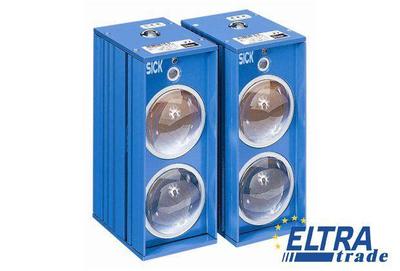

Sick ISD280-1111S03

Optical data transmission
Sick ISD280-1111S03
Price on Request
One click request

Specification:

Part Number1027187
Electromagnetic compatibility (EMC):EN 61000-6-2 / EN 61000-6-4
Signal delay:≤ 2 µs
Light source:Infrared LED (860 nm)
Power consumption:With heating ≤ 2.5 A, Without heating ≤ 0.4 A
Housing material:Metal
Switching input:Vs: sender deactivated
Max. rel. humidity (not condensing):± 90 %, non-condensing
Weight:1 kg
Ambient temperature:Operation with heating: -38 ... 40 °C, Operation without heating: 0 ... 40 °C, Storage: -20 ... 70 °C
Transmission range:0.2 m ... 150 m
Connection type:Connector, 3 x M12, 5-pin
Supply voltage Vs:DC 24 V, +20% / -5% (with heating), DC 24 V, ±20 % (without heating)
Protection class:III
Field of view:Ca. ± 0.4 °
Enclosure rating:IP 54
Data interface:RS-422/-485
PROFIBUS DP
Data transmission rate:1.5 MBaud
Switching output:VS - 2 V: interference-free operation, Iout = 20 mA
Heating:-
Typ. light spot size (distance):1.4 m (at 100 m)
