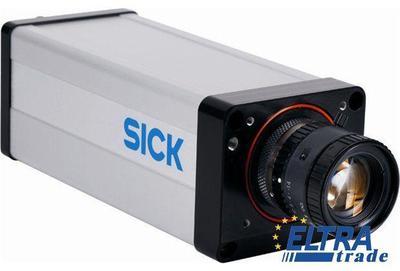

Sick IVC-2DM1111 2D vision

Sick IVC-2DM1111
Item Number: IVC-2DM1111
  • Suitable for advanced inspections and measurements
  • Flexible working distance and field of view
  • Stand-alone operation, no PC needed
Price on Request
Quantity
-
+
Total price: 0.00
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Sick IVC-2DM1111 is outdated.

Specification:

Part Number1027190
Ripple:< 5 Vpp
Ethernet:+
Example field of view (H x W):See Field of view diagram
Ambient storage temperature :-20 °C ... +70 °C
Supply voltage:24 V DC± 20 %
Weight:505 g
Offline support:Emulator
Connection types:M12, 4-pin female connector, D-coded (Ethernet)
M12, 8-pin female connector (RS-485)
M12, 8-pin male connector (power I/O)
Dimensions (L x W x H):161 mm x 60 mm x 55 mm
Optics:C or CS-mount
Maximum performance:30 Hz
Digital inputs:4 program controlled inputs (1 trigger input), HIGH = 10 V ... 28.8 V
Protection class:II, III
Digital outputs:3 B-type program controlled outputs, Total output load < 100 mA, Trigger output
Configuration software:IVC Studio
Image sensor:1/3" CCD, electronic shutter
Enclosure rating:IP 54 IP 65 with lens protection hood
Connector material:Nickel plated brass
Power consumption:< 400 mA Without output load
Operator interfaces:Application specific operator interfaces can be created using ActiveX (COM) or as web page. Included OPC server enables data exchange with e.g. SCADA systems.
Processor:800 MHz
Memory:128 MB RAM, 16 MB flash
Function (Ethernet):OPC DA Server
Vibration load:5 g, 58 Hz ... 150 Hz
Technology:2D
Image analysis
Snapshot
Ambient operating temperature :0 °C ... +50 °C
Shock load:15 g, 3 x 6 directions
Spectral range:Ca. 400 nm ... 750 nm
Serial (RS-485):1
Data store and retrieve:Images and data can be stored to and retrieved from flash and external FTP servers
Task:Inspection
Measuring
Positioning
Protocol (Ethernet):TCP/IP, UDP, EtherNet/IP
Sensor resolution:640 px x 480 px, 640 px x 480 px
Housing material:Anodized aluminum
Data transmission rate (Ethernet):10/100 Mbit
