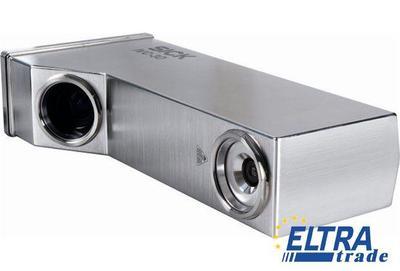

Sick IVC-3D11113 Ranger 3D machine vision

Sick IVC-3D11113
Item Number: IVC-3D11113
  • Easy 3D measurement - provides information about object height, shape and volume
  • Independent of contrast and color
  • Easy-to-use graphical user interface for fast application development
13528.52
Quantity
-
+
Total price: 13528.52
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Specification:

Part Number1048004
Example field of view (H x W):200 mm x 600 mm
Light source:Visible red light (laser, 658 nm, ± 15 nm)
Width at maximum working distance:810 mm
Ambient storage temperature:-20 °C ... +70 °C
Imaging angle:58 °
3D profile resolution:2,048 points
Task:Inspection, Reading, Measuring, Positioning
Vibration load:5 g, 58 Hz ... 150 Hz
Maximum encoder frequency:2 MHz
Offline support:Emulator
Typical height resolution:0.2 mm
Shock load:15 g, 3 x 6 directions
Maximum performance:5,000 3D profiles/s
Protection class:II, III
Optics:Fixed
Maximum height range:377 mm
Processor:800 MHz
Window material:PMMA
Communication interfaces:RS-485
Fast Ethernet (10/100 Mbit/s): TCP/IP, UDP/IP, EtherNet/IP
OPC server included
Encoder interface:RS-422
Laser class:2M (IEC 60825-1 : 2007-03)
Connector material:Stainless steel
Data store and retrieve:Images and data can be stored to and retrieved from flash and external FTP servers
Digital outputs:3 B-type program controlled outputs, Total output load < 100 mA, Trigger output
Supply voltage:24 V DC± 20 %
Sensing distance:300 mm ... 677 mm
Digital inputs:3 program controlled inputs (1 trigger input), HIGH = 10 V ... 28.8 V
Ambient operating temperature:0 °C ... +40 °C
Weight:6.7 kg
Housing material:Stainless steel
Width at minimum working distance:436 mm
Connection types:M12, 4-pin female connector, D-coded (Ethernet)
M12, 5-pin male (Encoder)
M12, 8-pin female connector (RS-485)
M12, 8-pin male connector (power I/O)
Technology:3D
Image analysis
LineScan
Memory:128 MB RAM, 16 MB flash
Configuration software:IVC Studio
Power consumption:< 1 A Without output load
Ripple:< 5 Vpp
Dimensions (L x W x H):404 mm x 103 mm x 187 mm
Enclosure rating:IP 67
Image sensor:CMOS
Operator interfaces:Application specific operator interfaces can be created using ActiveX (COM) or as web page. Included OPC server enables data exchange with e.g. SCADA systems.
