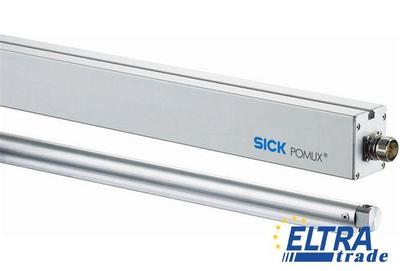

Sick KHK53-AXB00548 Linear Encoders & Transducers

Sick KHK53-AXB00548
Item Number: KHK53-AXB00548
  • Non-contact length measurement - maintenance-free, rugged, long lifetime
  • High reproducibility (0.3 mm / 1 mm), high system resolution (0.1 mm)
  • SSI and PROFIBUS interfaces
4448.13
Quantity
-
+
Total price: 4448.13
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Specification:

Part Number1035449
Piston speed:6.6 m/s
Material:AlMgSiPbF28
Position tolerance:± 20 mm
Power consumption:250 mA
Electrical interface:SSI
Storage temperature range:-40 °C ... +85 °C
Initialization time:2 s
Connection type:Connector M23, 12-pin
Interface for parametrization:Data format: 1 start bit, 8 data bits, 1 stop bit, no parity, Data protocol: ASCII, Baud rate 9600 RS-422, RS-422, Four wire transmission, asynchrony, full duplex
MTTFd: mean time to dangerous failure:22 a (EN ISO 13849)
Enclosure rating:IP 65 (IEC 60529), with mating connector inserted
EMC:(according to EN 61000-6-2 and EN 61000-6-4)
Measurement accuracy:± 2000 + ME (Tu-25° C) Tk µm
Measuring range:548 m
Mass:6.7 kg
Resolution:0.1 mm
Working temperature range:-30 °C ... +70 °C
Resistance to shocks:30 g, 10 ms (DIN EN 60 068-2-27)
Resistance to vibration:10 g, 20 Hz ... 250 Hz (EN 60068-2-6)
Standard (default setting SSI standard):RS-422 off
Repeat accuracy:1 mm
Data format:SSI 24 bits format
Interface signals:Digital, serial
Supply voltage:10 V ... 32 V
Position forming time:0.8 ms
Measuring length:0 m ... 548 m
