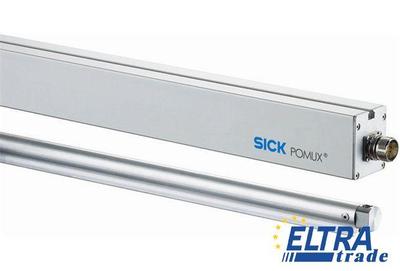

Sick KHK53-AXB01700 Linear Encoders & Transducers

Sick KHK53-AXB01700
Item Number: KHK53-AXB01700
  • Non-contact length measurement - maintenance-free, rugged, long lifetime
  • High reproducibility (0.3 mm / 1 mm), high system resolution (0.1 mm)
  • SSI and PROFIBUS interfaces
4271.64
Quantity
-
+
Total price: 4271.64
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Sick KHK53-AXB01700 is outdated.

Specification:

Part Number1030082
Interface for parametrization:Data format: 1 start bit, 8 data bits, 1 stop bit, no parity, Data protocol: ASCII, Baud rate 9600 RS-422, RS-422, Four wire transmission, asynchrony, full duplex
Enclosure rating:IP 65 (IEC 60529), with mating connector inserted
Piston speed:6.6 m/s
Supply voltage:10 V ... 32 V
Mass:5.2 kg
Connection type:Connector M23, 12-pin
Working temperature range:-20 °C ... +60 °C
Interface signals:Digital, serial
Repeat accuracy:0.3 mm
Initialization time:2 s
MTTFd: mean time to dangerous failure:21 a (EN ISO 13849)
Power consumption:250 mA
Measuring range:1,700 m
Measuring length:0 m ... 1,700 m
Electrical interface:SSI
Standard (default setting SSI standard):RS-422 off
Resistance to shocks:30 g, 10 ms (DIN EN 60 068-2-27)
Material:AlMgSiPbF28
Measurement accuracy:± 1000 + ME (Tu-25° C) Tk µm
Storage temperature range:-40 °C ... +85 °C
EMC:(according to EN 61000-6-2 and EN 61000-6-4)
Position forming time:0.8 ms
Resolution:0.1 mm
Position tolerance:± 10 mm
Data format:SSI 24 bits format
Resistance to vibration:10 g, 20 Hz ... 250 Hz (EN 60068-2-6)
