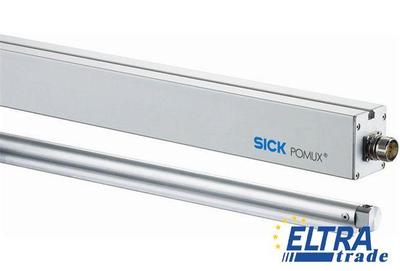

Sick KHK53-AXT00354
Linear encoders
Specification:
| Part Number | 1030070 |
| Position forming time: | 0.8 ms |
| Measuring length: | 0 m ... 354 m |
| Resistance to shocks: | 30 g, 10 ms (DIN EN 60 068-2-27) |
| Material: | AlMgSiPbF28 |
| Measurement accuracy: | ± 1000 + ME (Tu-25° C) Tk µm |
| Working temperature range: | -20 °C ... +60 °C |
| Power consumption: | 250 mA |
| Mass: | 3.6 kg |
| Electrical interface: | SSI |
| Position tolerance: | ± 10 mm |
| Initialization time: | 2 s |
| Repeat accuracy: | 0.3 mm |
| Data format: | SSI 24 bits format |
| Enclosure rating: | IP 66 (IEC 60529) |
| Resistance to vibration: | 10 g, 20 Hz ... 250 Hz (EN 60068-2-6) |
| Piston speed: | 6.6 m/s |
| Measuring range: | 354 m |
| Standard (default setting SSI standard): | RS-422 off |
| Storage temperature range: | -40 °C ... +85 °C |
| EMC: | (according to EN 61000-6-2 and EN 61000-6-4) |
| MTTFd: mean time to dangerous failure: | 31 a (EN ISO 13849) |
| Interface signals: | Digital, serial |
| Interface for parametrization: | Data format: 1 start bit, 8 data bits, 1 stop bit, no parity, Data protocol: ASCII, Baud rate 9600 RS-422, RS-422, Four wire transmission, asynchrony, full duplex |
| Supply voltage: | 10 V ... 32 V |
| Resolution: | 0.1 mm |
| Connection type: | Cable, 5 m |
