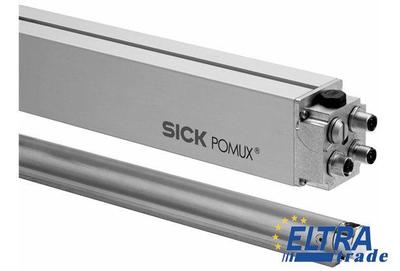

Sick KHK53-PXF00354 Linear Encoders & Transducers

Sick KHK53-PXF00354
Item Number: KHK53-PXF00354
  • Non-contact length measurement - maintenance-free, rugged, long lifetime
  • High reproducibility (0.3 mm / 1 mm), high system resolution (0.1 mm)
  • SSI and PROFIBUS interfaces
3421.28
Quantity
-
+
Total price: 3421.28
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Specification:

Part Number1036165
Material:AlMgSiPbF28
Mass:3.6 kg
Storage temperature range:-40 °C ... +85 °C
Piston speed:6.6 m/s
Data protocol:Profibus DP basic functions, Profile for encoders (07hex) - Class 2
Enclosure rating:IP 67 (IEC 60529), with mating connector inserted
Resistance to shocks:30 g, 10 ms (DIN EN 60 068-2-27)
Connection type:3 x connector M12
Resistance to vibration:10 g, 20 Hz ... 250 Hz (EN 60068-2-6)
Bus interface:RS-485
Measuring range:354 m
Electrical interface:PROFIBUS DP
Measuring length:0 m ... 354 m
Address setting:0 ... 127, Hex switches or Protocol
SET (electronic adjustment):Via protocol
Bus termination:Via external switches
Resolution:0.1 mm
Repeat accuracy:0.3 mm
EMC:(according to EN 61000-6-2 and EN 61000-6-4)
MTTFd: mean time to dangerous failure:28 a (EN ISO 13849)
Supply voltage:10 V ... 32 V
Initialization time:2 s
Measurement accuracy:± 1000 + ME (Tu-25° C) Tk µm
Status information:Operation (LED green), Bus aktivity (LED red)
Working temperature range:-20 °C ... +60 °C
Position forming time:1.1 ms
Position tolerance:± 10 mm
Power consumption:2.5 W
