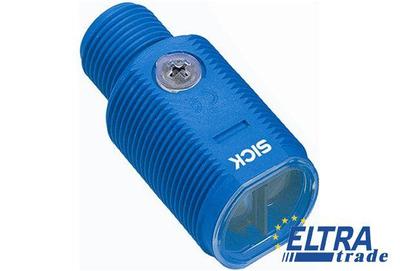

Sick KT1M-P1 Contrast sensors

Sick KT1M-P1
Item Number: KT1M-P1
  • For detecting simple contrast differences, such as black marks on light backgrounds
  • Small round housing with mounting accessories
  • NPN and PNP models
Price on Request
Quantity
-
+
Total price: 0.00
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Sick KT1M-P1 is outdated.

Specification:

Part Number1027306
Light spot size:Ø 2 mm
Enclosure rating:IP 67
Sensing distance:23.5 mm
Switching frequency :400 Hz
Housing material:ABS (plastic), Optics: PMMA
Adjustment:Manual adjustment, potentiometer
Weight:Ca. 7 g
Ambient temperature:Operation: -10 ... 55 °C, Storage: -25 ... 70 °C
Circuit protection:Outputs overcurrent and short-circuit protected, Interference suppression, VS connections reverse-polarity protected
Sensing distance tolerance:± 1.5 mm
Light source :LED, white
Ripple :≤ 5 Vpp
Switching output:PNP: HIGH = VS- ≤ 3 V / LOW = approx. 0 V
Output current Imax.:100 mA
Output function:Light switching
Connection type:Connector M12, 3-pin
Response time :1.25 ms
Supply voltage Vs :DC 10 V ... 30 V
Shock load:According to IEC 60068
Protection class :II
Power consumption :< 20 mA
Switching mode:PNP
