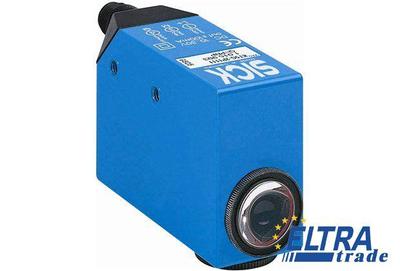

Sick KT5G-2P1121 Contrast sensors

Sick KT5G-2P1121
Item Number: KT5G-2P1121
  • Tough, metal housing
  • Manual switching threshold adjustment with optical adjustment indicator
  • Green or white LED technology
Price on Request
Quantity
-
+
Total price: 0.00
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Specification:

Part Number1015997
Sensing distance tolerance:± 3 mm
UL File No.:NRKH.E181493 & NRKH7.E181493
Sensing distance :10 mm
Connection type:Connector M12, 4-pin
Enclosure rating:IP 67
Dimensions (W x H x D):30.4 mm x 53 mm x 80 mm
Teach-in mode:Manual adjustment, potentiometer
Weight:400 g
Switching mode:PNP
Switching output:PNP: HIGH = VS- ≤ 2 V / LOW approx. 0 V
Response time :50 µs
Supply voltage:10 V DC ... 30 V DC
Switching frequency :10 kHz
Power consumption :< 80 mA
Housing design (light emission):Rectangular
Type of light:Visible green light
Light spot direction :Vertical
Light emission:Long and short side of housing, exchangeable
Output current Imax.:100 mA
Protection class :II
Wave length:520 nm
Circuit protection:Output Q short-circuit protected, Interference suppression, VS connections reverse-polarity protected
Time delay:20 ms
Housing material:Metal, Zinc diecast
Fieldbus interface:-
Ripple :≤ 5 Vpp
Light spot size:1.2 mm x 4.2 mm
Shock load:According to IEC 60068
Light source :LED
Ambient storage temperature:-25 °C ... +75 °C
Output function:Light/dark switching
Ambient operating temperature:-10 °C ... +55 °C
