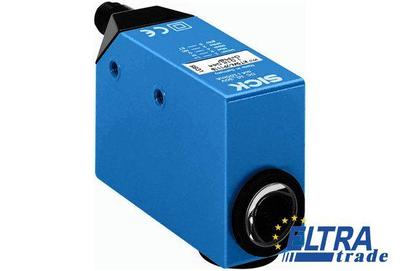

Sick KT5RG-2N1116 Contrast sensors

Sick KT5RG-2N1116
Item Number: KT5RG-2N1116
  • Tough, metal housing
  • Various teach-in methods via control panel or control cable
  • Maximum detection reliability due to 3-color RGB LED technology
Price on Request
Quantity
-
+
Total price: 0.00
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Specification:

Part Number1027394
Sensing distance tolerance:± 3 mm
Light spot direction :Vertical
Switching frequency :10 kHz
Input, teach-in (ET):NPN:, Run: U = 10 V ... < UV, Teach: U < 2 V
Response time :50 µs
Teach-in mode:Static 2-point teach-in
Ripple :≤ 5 Vpp
Light spot size:1.2 mm x 4.2 mm
Retention time (ET):25 ms, non-volatile memory
Light source :LED
Switching mode:NPN
Enclosure rating:IP 67
Protection class:III
Wave length:525 nm, 640 nm
Ambient operating temperature:-10 °C ... +55 °C
Power consumption :< 80 mA
Weight:400 g
Housing material:Metal, Zinc diecast
Connection type:Connector M12, 4-pin
Output current Imax.:100 mA
Sensing distance :10 mm
Type of light:Visible green light, Visible red light
Housing design (light emission):Rectangular
Dimensions (W x H x D):30.4 mm x 53 mm x 80 mm
Ambient storage temperature:-25 °C ... +75 °C
Fieldbus interface:-
Supply voltage:10 V DC ... 30 V DC
Circuit protection:Output Q short-circuit protected, Interference suppression, VS connections reverse-polarity protected
Switching output:NPN: HIGH = approx. VS / LOW ≤ 2 V
Shock load:According to IEC 60068
