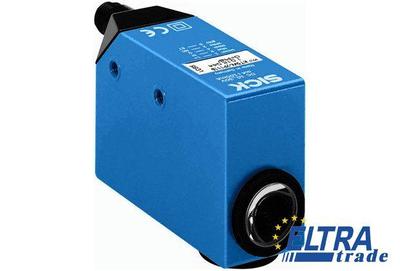

Sick KT5W-2P1113 Contrast sensors

Sick KT5W-2P1113
Item Number: KT5W-2P1113
  • Tough, metal housing
  • Various teach-in methods via control panel or control cable
  • Maximum detection reliability due to 3-color RGB LED technology
Total price: 380.35
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments


Part Number1016629
Ambient storage temperature:-25 °C ... +75 °C
UL File No.:NRKH.E181493 & NRKH7.E181493
Shock load:According to IEC 60068
Protection class :II
Dimensions (W x H x D):30.4 mm x 53 mm x 80 mm
Light spot size:1.2 mm x 4.2 mm
Light source :LED
Enclosure rating:IP 67
Switching mode:PNP
Supply voltage:10 V DC ... 30 V DC
Input, teach-in (ET):PNP:, Run: U < 2 V, Teach: U = 10 V ... < UV
Output current Imax.:100 mA
Power consumption :< 80 mA
Type of light:Visible blue light, Visible green light, Visible red light
Housing material:Metal, Zinc diecast
Light spot direction :Vertical
Sensing distance tolerance:± 3 mm
Switching output:PNP: HIGH = VS- ≤ 2 V / LOW approx. 0 V
Ripple :≤ 5 Vpp
Wave length:470 nm, 525 nm, 640 nm
Light emission:Long and short side of housing, exchangeable
Response time :50 µs
Connection type:Male connector M12, 5-pin
Switching frequency :10 kHz
Retention time (ET):25 ms, non-volatile memory
Input, light/dark (L/D):Dark: U > 10 V ... < UV, Light: U = 0 V, PNP:
Circuit protection:Output Q short-circuit protected, Interference suppression, VS connections reverse-polarity protected
Teach-in mode:Dynamic teach-in
Weight:400 g
Fieldbus interface:-
Ambient operating temperature:-10 °C ... +55 °C
Housing design (light emission):Rectangular
Sensing distance :10 mm
