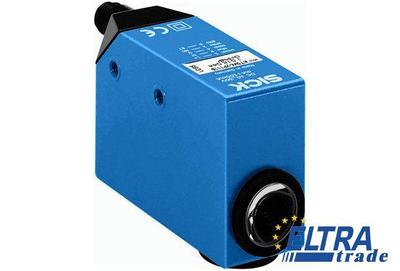

Sick KT5W-2P1216 Contrast sensors

Sick KT5W-2P1216
Item Number: KT5W-2P1216
  • Tough, metal housing
  • Various teach-in methods via control panel or control cable
  • Maximum detection reliability due to 3-color RGB LED technology
Price on Request
Total price: 0.00
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments


Part Number1018586
Power consumption :< 80 mA
Weight:400 g
Circuit protection:Output Q short-circuit protected, Interference suppression, VS connections reverse-polarity protected
Wave length:470 nm, 525 nm, 640 nm
Response time :50 µs
Output current Imax.:100 mA
Enclosure rating:IP 67
Sensing distance tolerance:± 3 mm
Light spot size:1.5 mm x 5.5 mm
Ambient storage temperature:-25 °C ... +75 °C
Housing design (light emission):Rectangular
Fieldbus interface:-
Ripple :≤ 5 Vpp
Housing material:Metal, Zinc diecast
Protection class :II
Input, teach-in (ET):PNP:, Run: U < 2 V, Teach: U = 10 V ... < UV
Dimensions (W x H x D):30.4 mm x 53 mm x 80 mm
Ambient operating temperature:-10 °C ... +55 °C
Supply voltage:10 V DC ... 30 V DC
Sensing distance :20 mm
Light spot direction :Vertical
Light source :LED
Shock load:According to IEC 60068
Switching frequency :10 kHz
Switching output:PNP: HIGH = VS- ≤ 2 V / LOW approx. 0 V
Light emission:Long and short side of housing, exchangeable
Switching mode:PNP
Teach-in mode:Static 2-point teach-in
Retention time (ET):25 ms, non-volatile memory
Type of light:Visible blue light, Visible green light, Visible red light
