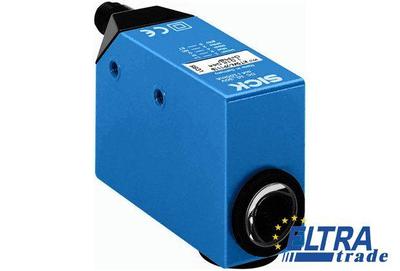

Sick KT5W-2P1316D Contrast sensors

Sick KT5W-2P1316D
Item Number: KT5W-2P1316D
  • Intuitive 10-segment bar graph display indicates detection status
  • Static 2-point teach-in of mark and background via the control cable
  • Maximum detection reliability due to 3-color RGB LED technology
Price on Request
Quantity
-
+
Total price: 0.00
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Specification:

Part Number1026578
Ambient operating temperature:-10 °C ... +55 °C
Response time :50 µs
Output current Imax.:100 mA
Circuit protection:Output Q short-circuit protected, Interference suppression, VS connections reverse-polarity protected
Type of light:Visible blue light, Visible green light, Visible red light
Light source :LED
Light spot size:1.1 mm x 4.2 mm
Wave length:470 nm, 525 nm, 640 nm
Shock load:According to IEC 60068
Protection class :II
Housing design (light emission):Rectangular
Retention time (ET):25 ms, non-volatile memory
Ripple :≤ 5 Vpp
Teach-in mode:Static 2-point teach-in with manual fine adjustment
Light emission:Long and short side of housing, exchangeable
Enclosure rating:IP 67
Supply voltage:10 V DC ... 30 V DC
Switching frequency :10 kHz
Weight:400 g
Connection type:Male connector M12, 5-pin
Sensing distance :40 mm
Ambient storage temperature:-25 °C ... +75 °C
Sensing distance tolerance:± 3 mm
Light spot direction :Vertical
Input, teach-in (ET):PNP:, Run: U < 2 V, Teach: U = 10 V ... < UV
Housing material:Metal, Zinc diecast
Dimensions (W x H x D):30.4 mm x 53 mm x 80 mm
Switching mode:PNP
Switching output:PNP: HIGH = VS- ≤ 2 V / LOW approx. 0 V
Power consumption :< 130 mA
Fieldbus interface:-
