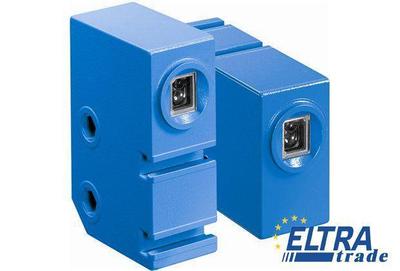

Sick KT6W-2P5116 Contrast sensors

Sick KT6W-2P5116
Item Number: KT6W-2P5116
  • 3-color RGB LED technology
  • 2-point teach-in (mark and background)
  • Tough, metal housing
Price on Request
Quantity
-
+
Total price: 0.00
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Sick KT6W-2P5116 is outdated.

Specification:

Part Number1046013
Protection class :II
Wave length:470 nm, 525 nm, 640 nm
Connection type:Connector M12, 4-pin
Ambient operating temperature:-10 °C ... +55 °C
Output current Imax.:100 mA
Sensing distance tolerance:± 3 mm
Type of light:Visible blue light, Visible green light, Visible red light
Enclosure rating:IP 67
Retention time (ET):25 ms, non-volatile memory
Light emission:Short side of housing
Supply voltage:10 V DC ... 30 V DC
Circuit protection:Output Q short-circuit protected, Interference suppression, VS connections reverse-polarity protected
Switching frequency :5 kHz
Switching output:PNP: HIGH = VS- ≤ 2 V / LOW approx. 0 V
Switching mode:PNP
Fieldbus interface:-
Housing design (light emission):Rectangular
Light spot direction :Vertical
Light source :LED
Response time:100 µs
Dimensions (W x H x D):30.4 mm x 53 mm x 80 mm
Ambient storage temperature:-25 °C ... +75 °C
Ripple :≤ 5 Vpp
Sensing distance:10 mm
Housing material:Metal, Zinc diecast
Weight:400 g
Shock load:According to IEC 60068
Power consumption :< 40 mA
Teach-in mode:Static 2-point teach-in
Light spot size:1.5 mm x 6.5 mm
