Sick KTL5G-2N11 Contrast sensors

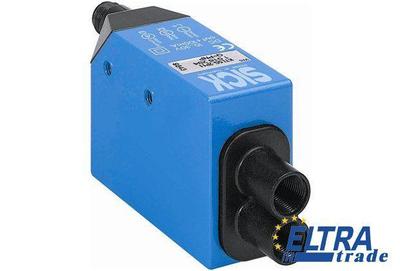

Sick KTL5G-2N11
Item Number: KTL5G-2N11
  • Various heat-resistant fiber-optic cable models are available
  • Various teach-in methods, including potentiometer
  • Analog output
369.97
Quantity
-
+
Total price: 369.97
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Specification:

Part Number1016295
Ambient storage temperature:-25 °C ... +75 °C
Connection type:Connector M12, 4-pin
Ambient operating temperature:-10 °C ... +55 °C
Type of light:Visible green light
Light spot size:Dependent on the fiber-optic cable
Response time :50 µs
Power consumption :< 80 mA
Switching output:NPN: HIGH = approx. VS / LOW ≤ 2 V
Dimensions (W x H x D):30.4 mm x 53 mm x 80 mm
UL File No.:NRKH.E181493 & NRKH7.E181493
Housing material:Metal, Zinc diecast
Teach-in mode:Manual adjustment, potentiometer
Output function:Light/dark switching
Ripple :≤ 5 Vpp
Wave length:520 nm
Sensing distance:Dependent on the fiber-optic cablethe fiber-optic cable
Output current Imax.:100 mA
Light source :LED
Shock load:According to IEC 60068
Circuit protection:Output Q short-circuit protected, Interference suppression, VS connections reverse-polarity protected
Fieldbus interface:-
Switching mode:NPN
Supply voltage:10 V DC ... 30 V DC
Housing design (light emission):Rectangular
Protection class :II
Weight:400 g
Switching frequency :10 kHz
Enclosure rating:IP 67
