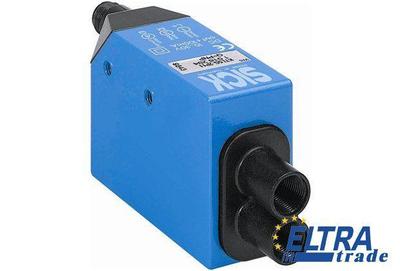

Sick KTL5G-2N51 Contrast sensors

Sick KTL5G-2N51
Item Number: KTL5G-2N51
  • Various heat-resistant fiber-optic cable models are available
  • Various teach-in methods, including potentiometer
  • Analog output
421.88
Quantity
-
+
Total price: 421.88
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Specification:

Part Number1016951
Circuit protection:Output Q short-circuit protected, Interference suppression, VS connections reverse-polarity protected
Fieldbus interface:-
Housing material:Metal, Zinc diecast
Protection class :II
Output function:Light/dark switching
Type of light:Visible green light
Power consumption :< 80 mA
Weight:400 g
Switching frequency :10 kHz
Ambient storage temperature:-25 °C ... +75 °C
Dimensions (W x H x D):30.4 mm x 53 mm x 80 mm
Shock load:According to IEC 60068
Response time :50 µs
Output current Imax.:100 mA
Housing design (light emission):Rectangular
Sensing distance:Dependent on the fiber-optic cablethe fiber-optic cable
Switching output:NPN: HIGH = approx. VS / LOW ≤ 2 V
Connection type:Connector M12, 4-pin
Wave length:520 nm
Light source :LED
Analog output QA:0.3 mA ... 10 mA
Ambient operating temperature:-10 °C ... +55 °C
Supply voltage:10 V DC ... 30 V DC
Teach-in mode:Manual adjustment, potentiometer
UL File No.:NRKH.E181493 & NRKH7.E181493
Light spot size:Dependent on the fiber-optic cable
Ripple :≤ 5 Vpp
Switching mode:NPN
Enclosure rating:IP 67
