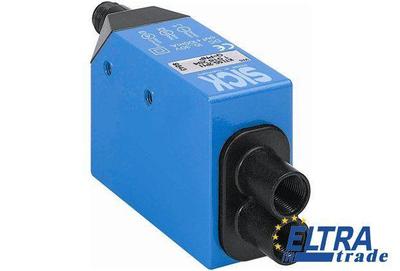

Sick KTL5G-2P51 Contrast sensors

Sick KTL5G-2P51
Item Number: KTL5G-2P51
  • Various heat-resistant fiber-optic cable models are available
  • Various teach-in methods, including potentiometer
  • Analog output
421.88
Quantity
-
+
Total price: 421.88
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Specification:

Part Number1016950
Shock load:According to IEC 60068
Supply voltage:10 V DC ... 30 V DC
Sensing distance:Dependent on the fiber-optic cablethe fiber-optic cable
Ambient storage temperature:-25 °C ... +75 °C
Housing design (light emission):Rectangular
Type of light:Visible green light
Ripple :≤ 5 Vpp
Switching mode:PNP
Fieldbus interface:-
Dimensions (W x H x D):30.4 mm x 53 mm x 80 mm
Switching output:PNP: HIGH = VS- ≤ 2 V / LOW approx. 0 V
Response time :50 µs
Enclosure rating:IP 67
Weight:400 g
Wave length:520 nm
Connection type:Connector M12, 4-pin
Output function:Light/dark switching
Teach-in mode:Manual adjustment, potentiometer
Light source :LED
UL File No.:NRKH.E181493 & NRKH7.E181493
Analog output QA:0.3 mA ... 10 mA
Power consumption :< 80 mA
Ambient operating temperature:-10 °C ... +55 °C
Circuit protection:Output Q short-circuit protected, Interference suppression, VS connections reverse-polarity protected
Switching frequency :10 kHz
Protection class :II
Housing material:Metal, Zinc diecast
Output current Imax.:100 mA
Light spot size:Dependent on the fiber-optic cable
