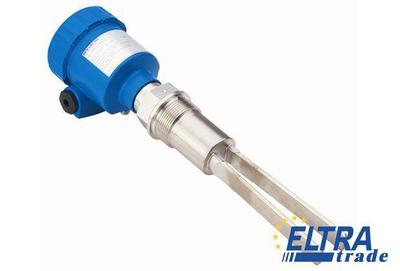

Sick LBV310-XXAGDT8MX Level sensors

Sick LBV310-XXAGDT8MX
Item Number: LBV310-XXAGDT8MX
  • Rugged device design
  • Several housing materials and electrical outputs available
  • Immune to deposit formation
633.56
Quantity
-
+
Total price: 633.56
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Specification:

Part Number6038018
Initialization time:2 s
Enclosure rating:IP 66
Probe length:220 mm
Process temperature:-50 °C ... 150 °C
Switching output:Transistor output PNP/ NPN: 10 V DC ... 55 V DC
Measurement:Switch
ATEX certification:-
Housing material:Stainless steel (electropolished) 316L
Process pressure:-1 bar ... 25 bar
Hysteresis:10 mm
Fill material density:0.008 g/cm
Connection type:M20x1,5
Ambient operating temperature:-40 °C ... 80 °C
Power consumption:< 10 mA
Repeatability:± 5 mm
VDE protection class 2:+
Signal voltage HIGH:Uv - 3 V
Accuracy:± 10 mm
Ambient storage temperature:-40 °C ... 80 °C
Medium:Bulk solids
Process connection:G 1½ A PN 25 / 316L
Signal voltage LOW:< 1 V
Response time:500 ms
Ripple:<= 5 Vpp
Inductive load:1 H
Output current:< 300 mA
Sensor material:Stainless steel 1.4404
Capacitive load:100 nF
Particle size:< 10 mm
