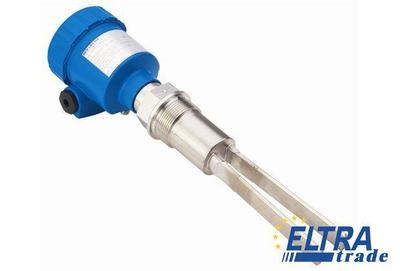

Sick LBV310-XXAGDTANX Level sensors

Sick LBV310-XXAGDTANX
Item Number: LBV310-XXAGDTANX
  • Rugged device design
  • Several housing materials and electrical outputs available
  • Immune to deposit formation
546.13
Quantity
-
+
Total price: 546.13
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Specification:

Part Number6038020
Output current:< 300 mA
VDE protection class 2:+
Measurement:Switch
Connection type:½" NPT
Probe length:220 mm
Ripple:<= 5 Vpp
Medium:Bulk solids
Signal voltage HIGH:Uv - 3 V
Housing material:Aluminum
Signal voltage LOW:< 1 V
Accuracy:± 10 mm
Inductive load:1 H
Power consumption:< 10 mA
Particle size:< 10 mm
Initialization time:2 s
Sensor material:Stainless steel 1.4404
ATEX certification:-
Process connection:G 1½ A PN 25 / 316L
Fill material density:0.008 g/cm
Enclosure rating:IP 66
Repeatability:± 5 mm
Ambient operating temperature:-40 °C ... 80 °C
Hysteresis:10 mm
Ambient storage temperature:-40 °C ... 80 °C
Switching output:Transistor output PNP/ NPN: 10 V DC ... 55 V DC
Process pressure:-1 bar ... 25 bar
Process temperature:-50 °C ... 150 °C
Response time:500 ms
Capacitive load:100 nF
