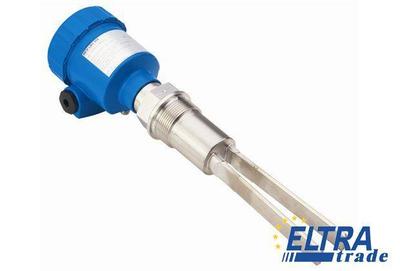

Sick LBV310-XXBNDTKNX Level sensors

Item Number: LBV310-XXBNDTKNX
  • Rugged device design
  • Several housing materials and electrical outputs available
  • Immune to deposit formation
Price on Request
Total price: 0.00
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Sick LBV310-XXBNDTKNX is outdated.


Part Number6038091
Accuracy:± 10 mm
Hysteresis:10 mm
Medium:Bulk solids
VDE protection class 2:+
Repeatability:± 5 mm
Capacitive load:100 nF
Ambient storage temperature:-40 °C ... 80 °C
Response time:500 ms
Process temperature:-50 °C ... 250 °C
Output current:< 300 mA
Particle size:< 10 mm
Signal voltage LOW:< 1 V
Inductive load:1 H
Initialization time:2 s
Ambient temperature operation:-40 °C ... 80 °C
Process pressure:-1 bar ... 25 bar
Ripple:<= 5 Vpp
Housing material:Plastic
Process connection:1 1/2" NPT PN 25 / 316L
Fill material density:0.008 g/cm
ATEX certification:-
Sensor material:Stainless steel 1.4404
Enclosure rating:IP 66
Probe length:220 mm
Connection type:½" NPT
Signal voltage HIGH:Uv - 3 V
Power consumption:< 10 mA
Switching output:Transistor output PNP/ NPN: 10 V DC ... 55 V DC
