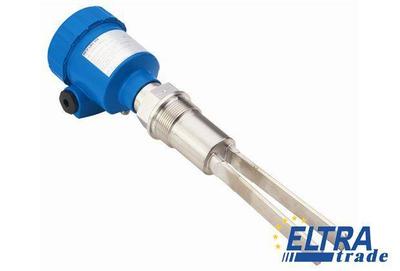

Sick LBV310-XXCNDNKNX Level sensors
Item Number: LBV310-XXCNDNKNX
- Rugged device design
- Several housing materials and electrical outputs available
- Immune to deposit formation
- Overview
- Datasheet
- Alternative numbers
- Comments
Sick LBV310-XXCNDNKNX is outdated.
Specification:
| Part Number | 6038145 |
| Ambient temperature operation: | -40 °C ... 80 °C |
| Probe length: | 220 mm |
| Process pressure: | -1 bar ... 25 bar |
| Medium: | Bulk solids |
| Switching output: | NAMUR signal: 4.5 V DC ... 12 V DC |
| Hysteresis: | 10 mm |
| Accuracy: | ± 10 mm |
| Ambient storage temperature: | -40 °C ... 80 °C |
| Output current: | 1 mA / 2,5 mA |
| Housing material: | Plastic |
| Initialization time: | 2 s |
| VDE protection class 2: | + |
| Power consumption: | 1 mA / 2,5 mA |
| Measurement: | Switch |
| Repeatability: | ± 5 mm |
| Connection type: | ½" NPT |
| Particle size: | < 10 mm |
| Enclosure rating: | IP 66 |
| Process connection: | 1 1/2" NPT PN 25 / 316L |
| Process temperature: | -50 °C ... 150 °C |
| Response time: | 500 ms |
| ATEX certification: | - |
| Sensor material: | Stainless steel 1.4404 |
| Fill material density: | 0.008 g/cm |
