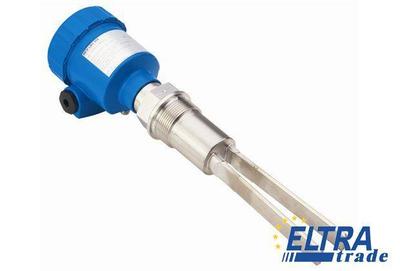

Sick LBV310-XXCNDT8NX Level sensors

Item Number: LBV310-XXCNDT8NX
  • Rugged device design
  • Several housing materials and electrical outputs available
  • Immune to deposit formation
Price on Request
Total price: 0.00
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Sick LBV310-XXCNDT8NX is outdated.


Part Number6038141
Signal voltage HIGH:Uv - 3 V
Process connection:1 1/2" NPT PN 25 / 316L
Capacitive load:100 nF
Switching output:Transistor output PNP/ NPN: 10 V DC ... 55 V DC
Repeatability:± 5 mm
Output current:< 300 mA
Inductive load:1 H
Process temperature:-50 °C ... 150 °C
VDE protection class 2:+
Ambient storage temperature:-40 °C ... 80 °C
Ripple:<= 5 Vpp
Ambient temperature operation:-40 °C ... 80 °C
Signal voltage LOW:< 1 V
Process pressure:-1 bar ... 25 bar
Hysteresis:10 mm
Initialization time:2 s
Fill material density:0.008 g/cm
ATEX certification:-
Medium:Bulk solids
Particle size:< 10 mm
Response time:500 ms
Connection type:½" NPT
Probe length:220 mm
Enclosure rating:IP 66
Sensor material:Stainless steel 1.4404
Housing material:Stainless steel (electropolished) 316L
Power consumption:< 10 mA
Accuracy:± 10 mm
