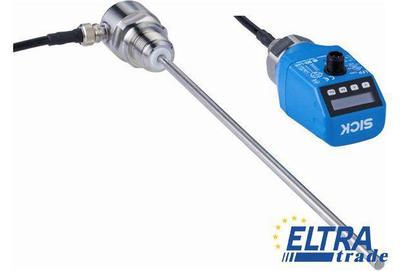

Sick LFP1000-A4BMB Level sensors

Sick LFP1000-A4BMB
Item Number: LFP1000-A4BMB
  • Level sensor for fluids
  • No mechanical moving parts
  • Manually cutable and exchangeable probe with lengths from 200 mm up to 2,000 mm or rope probe up to 4,000 mm
Price on Request
Quantity
-
+
Total price: 0.00
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Sick LFP1000-A4BMB is outdated.

Specification:

Part Number1071079
Upper signal level:20 mA ... 20.5 mA
Max.probe load:6 Nm
Signal voltage HIGH:Vs - 2 V
Process connection:G ¾ A
Length coaxial cable:1 m, PVC
Ambient storage temperature:-40 °C ... +80 °C
Probe type:Mono rod probe
Output current:< 100 mA
Hysteresis:Min. 2 mm, free adjustable
Repeatability:≤ 2 mm
Process pressure:-1 bar ... 10 bar
Probe length:1,000 mm
Resolution:< 2 mm
Response time:< 400 ms
Temperature drift:< 0.1 mm/K
Inductive load:< 1 H
IO-Link:+
Inactive area at probe end:10 mm
Design:Remote amplifier, cable length 1 m
Output signal:1 PNP transistor output (Q1) and 1 PNP / NPN transistor output (Q2) switchable, 4 mA ... 20 mA, 0 V ... 10 V automatic switching depending on the load.
Medium:Fluids
MTTF:194.3 a (EN ISO 13849-1)
Measurement:Switch, Continuous
Lower signal level:3.8 mA ... 4 mA
GOST approval:+
Signal voltage LOW:≤ 2 V
Conductivity:No limitation
Connection type:Round connector M12 x 1, 5-pin
Power consumption:≤ 100 mA at 24 V DC without output load
Process temperature:-20 °C ... +100 °C
EMC:EN 61326-1:2006, 2004/108/EG
Wetted parts:1.4404, PTFE
Protection class:III
Accuracy of sensor element:± 5 mm
Dielectricity constant:≥ 1.8 with coaxial tube, ≥ 5 for mono rod probe / rope probe
Inactive area at process connector:25 mm
Ambient temperature operation:-20 °C ... +60 °C
CULus certificate:+
Supply voltage:12 V DC ... 30 V DC
Maximum level change:500 mm/s
Housing material:Plastic PBT
RoHS certificate:+
Output load:0 V ... 10 V > 750 Ohm at Uv >= 14 V, 4 mA ... 20 mA < 350 Ohm at Uv > 12 V, 4 mA ... 20 mA < 500 Ohm at Uv > 15 V
Capacitive load:100 nF
Initialization time:≤ 5 s
Ambient temperature coaxial cable:-20 °C ... +60 °C
Enclosure rating:IP 67: EN 60529
