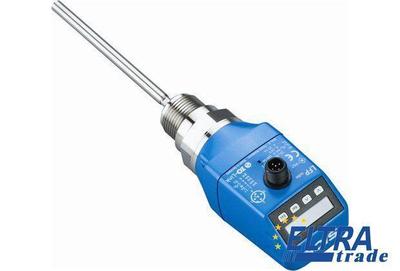

Sick LFP1200-A5NMC Level sensors

Sick LFP1200-A5NMC
Item Number: LFP1200-A5NMC
  • Level sensor for fluids
  • No mechanical moving parts
  • Manually cutable and exchangeable probe with lengths from 200 mm up to 2,000 mm or rope probe up to 4,000 mm
415.05
Quantity
-
+
Total price: 415.05
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Sick LFP1200-A5NMC is outdated.

Specification:

Part Number1062255
Output load:0 V ... 10 V > 750 Ohm at Uv >= 14 V, 4 mA ... 20 mA < 350 Ohm at Uv > 12 V, 4 mA ... 20 mA < 500 Ohm at Uv > 15 V
Medium:Fluids
Capacitive load:100 nF
Hysteresis:Min. 2 mm, free adjustable
Response time:< 400 ms
Lower signal level:3.8 mA ... 4 mA
Connection type:Round connector M12 x 1, 8-pin
Inactive area at probe end:10 mm
Output current:< 100 mA
Power consumption:≤ 100 mA at 24 V DC without output load
Housing material:Plastic PBT
MTTF:194.3 a (EN ISO 13849-1)
Resolution:< 2 mm
Maximum level change:500 mm/s
Process pressure:-1 bar ... 10 bar
Upper signal level:20 mA ... 20.5 mA
Accuracy of sensor element:± 5 mm
Probe length:1,200 mm
IO-Link:+
GOST approval:+
Signal voltage HIGH:Vs - 2 V
Dielectricity constant:≥ 1.8 with coaxial tube, ≥ 5 for mono rod probe / rope probe
Enclosure rating:IP 67: EN 60529
Inductive load:< 1 H
EMC:EN 61326-1:2006, 2004/108/EG
Max.probe load:6 Nm
Supply voltage:12 V DC ... 30 V DC
Probe type:Mono rod probe
Wetted parts:1.4404, PTFE
Initialization time:≤ 5 s
Repeatability:≤ 2 mm
Process connection:G ¾ A
Signal voltage LOW:≤ 2 V
Output signal:1 PNP transistor output (Q1) und 3 PNP / NPN transistor output (Q2...Q4) switchable, 4 mA ... 20 mA, 0 V ... 10 V automatic switching depending on the load.
Ambient temperature operation:-20 °C ... +60 °C
Protection class:III
Inactive area at process connector:25 mm
Measurement:Switch, Continuous
Ambient storage temperature:-40 °C ... +80 °C
Temperature drift:< 0.1 mm/K
Process temperature:-20 °C ... +100 °C
CULus certificate:+
Design:Standard
Conductivity:No limitation
RoHS certificate:+
