Sick LFP2300-G1NMB Level sensors

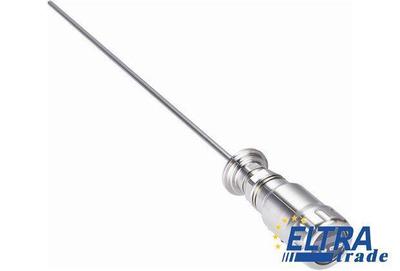

Sick LFP2300-G1NMB
Item Number: LFP2300-G1NMB
  • Level monitoring in hygienic applications
  • Manually cutable monoprobe up to 4,000 mm long with Ra lessthan 0.8 µm
  • Process temperature up to 180 °C, process pressure up to 16 bar
Price on Request
Quantity
-
+
Total price: 0.00
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Sick LFP2300-G1NMB is outdated.

Specification:

Part Number1065359
Output load:0 V ... 10 V > 750 Ohm at Uv >= 14 V, 4 mA ... 20 mA < 400 Ohm at Uv > 12 V, 4 mA ... 20 mA < 500 Ohm at Uv > 13,5 V
Housing design:With PMMA viewing window
UL approval:+
RoHS certificate:+
Resolution:< 2 mm
Hysteresis:Min. 2 mm, free adjustable
Inductive load:< 1 H
Signal voltage HIGH:Vs - 2 V
Interference emission:EN 61000-6-4:2007
Capacitive load:100 nF
Max.probe load:6 Nm
Measurement:Switch, Continuous
Ambient storage temperature:-40 °C ... +80 °C
Supply voltage:12 V DC ... 30 V DC
Process connection:G ¾ A
Initialization time:≤ 2 s
Process pressure:-1 bar ... 16 bar
Connection type:Round connector M12 x 1, 5-pin
Probe length:2,300 mm
Housing material:303
Inactive area at probe end:10 mm
Protection class:III
3-A:-
Conductivity:No limitation
Response time:< 400 ms
Single- and continuous shock:EN 60068-2-27
Wetted parts:316L (Ra ≤ 0,8 µm), PEEK
Power consumption:≤ 75 mA at 24 V DC without output load
MTTF:194.3 a (EN ISO 13849-1)
Process temperature:-20 °C ... +150 °C
Upper signal level:20 mA ... 20.5 mA
Inactive area at process connector:25 mm
Output current:< 100 mA
Medium:Fluids
Accuracy of sensor element:± 5 mm
EHEDG approval:+
Lower signal level:3.8 mA ... 4 mA
Temperature drift:< 0.1 mm/K
Repeatability:≤ 2 mm
Enclosure rating:IP 67: EN 60529, IP 69K: EN 40050
GOST approval:+
EMC:EN 61326-1:2006, 2004/108/EG
Dielectricity constant:≥ 1.8 with coaxial tube, ≥ 5 for mono probe
IO-Link:+
Signal voltage LOW:≤ 2 V
Ambient temperature operation:-20 °C ... +60 °C
Interference resistance:EN 61000-6-2:2005
