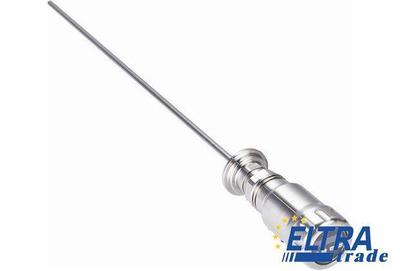

Sick LFP2800-G1NMB Level sensors

Sick LFP2800-G1NMB
Item Number: LFP2800-G1NMB
  • Level monitoring in hygienic applications
  • Manually cutable monoprobe up to 4,000 mm long with Ra lessthan 0.8 µm
  • Process temperature up to 180 °C, process pressure up to 16 bar
Price on Request
Quantity
-
+
Total price: 0.00
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Sick LFP2800-G1NMB is outdated.

Specification:

Part Number1064856
EHEDG approval:+
EMC:EN 61326-1:2006, 2004/108/EG
Max.probe load:6 Nm
Housing material:303
Measurement:Switch, Continuous
UL approval:+
Accuracy of sensor element:± 5 mm
GOST approval:+
Medium:Fluids
Repeatability:≤ 2 mm
Inactive area at process connector:25 mm
MTTF:194.3 a (EN ISO 13849-1)
IO-Link:+
Housing design:With PMMA viewing window
Conductivity:No limitation
Dielectricity constant:≥ 1.8 with coaxial tube, ≥ 5 for mono probe
Interference emission:EN 61000-6-4:2007
RoHS certificate:+
Temperature drift:< 0.1 mm/K
Process pressure:-1 bar ... 16 bar
Upper signal level:20 mA ... 20.5 mA
Lower signal level:3.8 mA ... 4 mA
Interference resistance:EN 61000-6-2:2005
Process connection:G ¾ A
Inductive load:< 1 H
Wetted parts:316L (Ra ≤ 0,8 µm), PEEK
Resolution:< 2 mm
Ambient temperature operation:-20 °C ... +60 °C
Process temperature:-20 °C ... +150 °C
3-A:-
Hysteresis:Min. 2 mm, free adjustable
Power consumption:≤ 75 mA at 24 V DC without output load
Enclosure rating:IP 67: EN 60529, IP 69K: EN 40050
Protection class:III
Probe length:2,800 mm
Inactive area at probe end:10 mm
Ambient storage temperature:-40 °C ... +80 °C
Signal voltage LOW:≤ 2 V
Output current:< 100 mA
Single- and continuous shock:EN 60068-2-27
Capacitive load:100 nF
Supply voltage:12 V DC ... 30 V DC
Output load:0 V ... 10 V > 750 Ohm at Uv >= 14 V, 4 mA ... 20 mA < 400 Ohm at Uv > 12 V, 4 mA ... 20 mA < 500 Ohm at Uv > 13,5 V
Signal voltage HIGH:Vs - 2 V
Connection type:Round connector M12 x 1, 5-pin
Initialization time:≤ 2 s
Response time:< 400 ms
