Sick LFV200-XAHCNTPM Level sensors

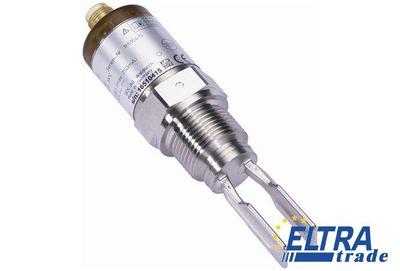

Sick LFV200-XAHCNTPM
Item Number: LFV200-XAHCNTPM
  • Housing made of 316L stainless steel
  • Two electrical output versions available
  • Commissioning without filling
Price on Request
Quantity
-
+
Total price: 0.00
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Specification:

Part Number6036539
Supply voltage:10 V DC ... 55 V DC
EHEDG approval:+
Process connection:Triclamp 2'' (PN 16, 316L, Ra<0.8µm)
VDE protection class 2:+
Process temperature:-40 °C ... +150 °C
Housing material:Stainless steel 1.4404, PEI
Response time:500 ms
Accuracy of sensor element:± 2 mm
Repeatability:≤ 1 mm
Authorizations:WHG approval
Probe length:38 mm
Capacitive load:100 nF
Signal voltage HIGH:Vs - < 3 V
Resolution:≤ 1 mm
WHG approval:+
Medium:Fluids
Process pressure:-1 bar ... 64 bar
Temperature drift:0,03 mm/K
Ripple:≤ 5 Vpp
Enclosure rating:IP 67
Connection type:Round connector M12 x 1, 4-pin
Output current:< 250 mA
Signal voltage LOW:0 V +- 1 V
Hysteresis:2 mm
Ambient storage temperature:-40 °C ... +80 °C
Inductive load:≤ 1 H
Initialization time:< 2 s
Fill material density:≥ 0.7 g/cm
Silicon free:-
Wetted parts:316L (optional Ra < 0.8 µm)
Ambient operating temperature:-40 °C ... +70 °C
Viscosity:0.1 mPas ... 10,000 mPas
Power consumption:< 10 mA
Measurement:Switch
