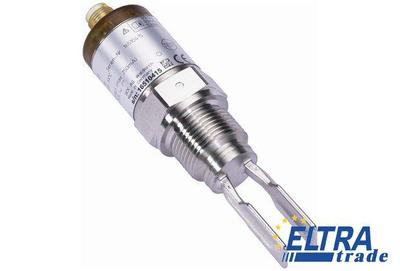

Sick LFV200-XAHRNTPM Level sensors

Sick LFV200-XAHRNTPM
Item Number: LFV200-XAHRNTPM
  • Housing made of 316L stainless steel
  • Two electrical output versions available
  • Commissioning without filling
Price on Request
Quantity
-
+
Total price: 0.00
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Sick LFV200-XAHRNTPM is outdated.

Specification:

Part Number6036542
Wetted parts:316L (optional Ra < 0.8 µm)
Ambient storage temperature:-40 °C ... +80 °C
Process pressure:-1 bar ... 64 bar
Supply voltage:10 V DC ... 55 V DC
Signal voltage LOW:0 V +- 1 V
Ambient operating temperature:-40 °C ... +70 °C
EHEDG approval:+
Process temperature:-40 °C ... +150 °C
WHG approval:+
VDE protection class 2:+
Measurement:Switch
Fill material density:≥ 0.7 g/cm
Probe length:38 mm
Signal voltage HIGH:Vs - < 3 V
Repeatability:≤ 1 mm
Housing material:Stainless steel 1.4404, PEI
Ripple:≤ 5 Vpp
Viscosity:0.1 mPas ... 10,000 mPas
Process connection:Conical coupling DN 50 acc. to DIN 11851 withunion nut (PN 40, 316L, Ra < 0.8µm)
Response time:500 ms
Connection type:Round connector M12 x 1, 4-pin
Inductive load:≤ 1 H
Enclosure rating:IP 67
Initialization time:< 2 s
Accuracy of sensor element:± 2 mm
Silicon free:-
Capacitive load:100 nF
Resolution:≤ 1 mm
Authorizations:WHG approval
Hysteresis:2 mm
Temperature drift:0,03 mm/K
Output current:< 250 mA
Power consumption:< 10 mA
Medium:Fluids
