Sick LFV200-XASGACPV Level sensors

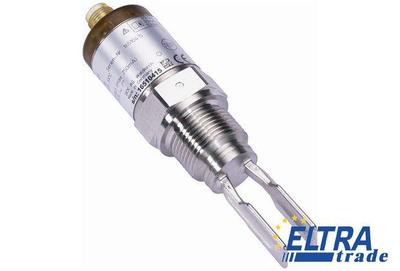

Sick LFV200-XASGACPV
Item Number: LFV200-XASGACPV
  • Housing made of 316L stainless steel
  • Two electrical output versions available
  • Commissioning without filling
Price on Request
Quantity
-
+
Total price: 0.00
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Sick LFV200-XASGACPV is outdated.

Specification:

Part Number6036377
Authorizations:WHG approval
Hysteresis:2 mm
Fill material density:≥ 0.7 g/cm
Capacitive load:100 nF
Output current:< 250 mA
Connection type:Valve plug DIN 43650
Temperature drift:0,03 mm/K
Process connection:G 1 A PN 64
Measurement:Switch
Initialization time:< 3 s
VDE protection class 1:+
Wetted parts:316L (optional Ra < 0.8 µm)
Supply voltage:20 V AC/DC ... 253 V AC/DC
Silicon free:-
Enclosure rating:IP 65
Process pressure:-1 bar ... 64 bar
Probe length:38 mm
Inductive load:≤ 1 H
Resolution:≤ 1 mm
Repeatability:≤ 1 mm
Ambient operating temperature:-40 °C ... +70 °C
Ambient storage temperature:-40 °C ... +80 °C
Power consumption:≤ 4.2 mA
Medium:Fluids
Process temperature:-40 °C ... +100 °C
WHG approval:+
Housing material:Stainless steel 1.4404, PEI
Viscosity:0.1 mPas ... 10,000 mPas
Response time:500 ms
Accuracy of sensor element:± 2 mm
