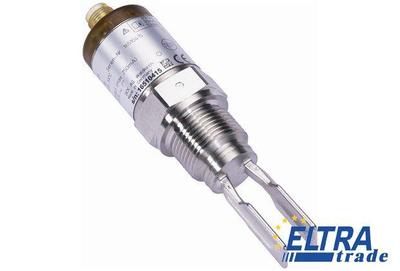

Sick LFV200-XASGBTPML Level sensors

Sick LFV200-XASGBTPML
Item Number: LFV200-XASGBTPML
  • Housing made of 316L stainless steel
  • Two electrical output versions available
  • Commissioning without filling
277.70
Quantity
-
+
Total price: 277.70
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Specification:

Part Number6037458
Signal voltage LOW:0 V +- 1 V
Ambient storage temperature:-40 °C ... +80 °C
Signal voltage HIGH:Vs - < 3 V
Hysteresis:2 mm
Fill material density:≥ 0.7 g/cm
Supply voltage:10 V DC ... 55 V DC
Response time:500 ms
Authorizations:WHG approval
Process temperature:-40 °C ... +100 °C
Ambient operating temperature:-40 °C ... +70 °C
Accuracy of sensor element:± 2 mm
Temperature drift:0,03 mm/K
Process connection:G ¾ A PN 64
Ripple:≤ 5 Vpp
Connection type:Round connector M12 x 1, 4-pin
Medium:Fluids
Repeatability:≤ 1 mm
Probe length:115 mm
Process pressure:-1 bar ... 64 bar
Wetted parts:316L (optional Ra < 0.8 µm)
Housing material:Stainless steel 1.4404, PEI
Power consumption:< 10 mA
Resolution:≤ 1 mm
Silicon free:-
Output current:< 250 mA
Enclosure rating:IP 67
Measurement:Switch
Inductive load:≤ 1 H
Initialization time:< 2 s
Viscosity:0.1 mPas ... 10,000 mPas
VDE protection class 2:+
WHG approval:+
Capacitive load:100 nF
