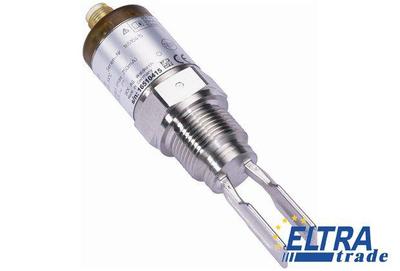

Sick LFV200-XATGACPVL Level sensors

Sick LFV200-XATGACPVL
Item Number: LFV200-XATGACPVL
  • Housing made of 316L stainless steel
  • Two electrical output versions available
  • Commissioning without filling
317.80
Quantity
-
+
Total price: 317.80
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Specification:

Part Number6037303
Response time:500 ms
Measurement:Switch
Inductive load:≤ 1 H
Accuracy of sensor element:± 2 mm
Viscosity:0.1 mPas ... 10,000 mPas
Power consumption:≤ 4.2 mA
Medium:Fluids
Probe length:115 mm
Wetted parts:316L (optional Ra < 0.8 µm)
Temperature drift:0,03 mm/K
Fill material density:≥ 0.7 g/cm
Supply voltage:20 V AC/DC ... 253 V AC/DC
Resolution:≤ 1 mm
Capacitive load:100 nF
Enclosure rating:IP 65
Process pressure:-1 bar ... 64 bar
Housing material:Stainless steel 1.4404, PEI
Process temperature:-40 °C ... +150 °C
Output current:< 250 mA
Ambient operating temperature:-40 °C ... +70 °C
Repeatability:≤ 1 mm
Silicon free:-
Initialization time:< 3 s
Authorizations:WHG approval
Hysteresis:2 mm
VDE protection class 1:+
Ambient storage temperature:-40 °C ... +80 °C
WHG approval:+
Connection type:Valve plug DIN 43650
Process connection:G 1 A PN 64
