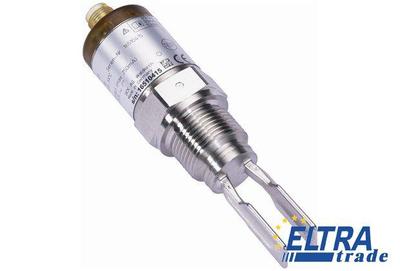

Sick LFV200-XATGATPM Level sensors

Sick LFV200-XATGATPM
Item Number: LFV200-XATGATPM
  • Housing made of 316L stainless steel
  • Two electrical output versions available
  • Commissioning without filling
Price on Request
Quantity
-
+
Total price: 0.00
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Sick LFV200-XATGATPM is outdated.

Specification:

Part Number6036365
Supply voltage:10 V DC ... 55 V DC
Connection type:Round connector M12 x 1, 4-pin
Housing material:Stainless steel 1.4404, PEI
Repeatability:≤ 1 mm
Resolution:≤ 1 mm
Output current:< 250 mA
Process temperature:-40 °C ... +150 °C
Hysteresis:2 mm
Signal voltage HIGH:Vs - < 3 V
Fill material density:≥ 0.7 g/cm
Temperature drift:0,03 mm/K
Medium:Fluids
Ambient operating temperature:-40 °C ... +70 °C
Enclosure rating:IP 67
Ambient storage temperature:-40 °C ... +80 °C
Process pressure:-1 bar ... 64 bar
Measurement:Switch
Authorizations:WHG approval
Ripple:≤ 5 Vpp
Response time:500 ms
Wetted parts:316L (optional Ra < 0.8 µm)
Viscosity:0.1 mPas ... 10,000 mPas
Initialization time:< 2 s
Silicon free:-
Signal voltage LOW:0 V +- 1 V
Power consumption:< 10 mA
Inductive load:≤ 1 H
Accuracy of sensor element:± 2 mm
Probe length:38 mm
Process connection:G 1 A PN 64
WHG approval:+
VDE protection class 2:+
Capacitive load:100 nF
